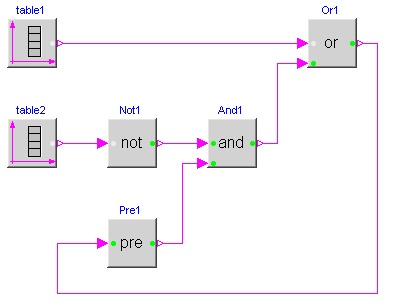

This package provides blocks with Boolean input and output signals to describe logical networks. A typical example for a logical network built with package Logical is shown in the next figure:

The actual value of Boolean input and/or output signals is displayed
in the respective block icon as "circle", where "white" color means
value **false** and "green" color means value **true**. These
values are visualized in a diagram animation.

Name | Description |
---|---|

And | Logical 'and': y = u1 and u2 |

Or | Logical 'or': y = u1 or u2 |

Xor | Logical 'xor': y = u1 xor u2 |

Nor | Logical 'nor': y = not (u1 or u2) |

Nand | Logical 'nand': y = not (u1 and u2) |

Not | Logical 'not': y = not u |

Pre | Breaks algebraic loops by an infinitesimal small time delay (y = pre(u): event iteration continues until u = pre(u)) |

Edge | Output y is true, if the input u has a rising edge (y = edge(u)) |

FallingEdge | Output y is true, if the input u has a falling edge (y = edge(not u)) |

Change | Output y is true, if the input u has a rising or falling edge (y = change(u)) |

GreaterThreshold | Output y is true, if input u is greater than threshold |

GreaterEqualThreshold | Output y is true, if input u is greater or equal than threshold |

LessThreshold | Output y is true, if input u is less than threshold |

LessEqualThreshold | Output y is true, if input u is less or equal than threshold |

Greater | Output y is true, if input u1 is greater than input u2 |

GreaterEqual | Output y is true, if input u1 is greater or equal than input u2 |

Less | Output y is true, if input u1 is less than input u2 |

LessEqual | Output y is true, if input u1 is less or equal than input u2 |

ZeroCrossing | Trigger zero crossing of input u |

LogicalSwitch | Logical Switch |

Switch | Switch between two Real signals |

Hysteresis | Transform Real to Boolean signal with Hysteresis |

OnOffController | On-off controller |

TriggeredTrapezoid | Triggered trapezoid generator |

Timer | Timer measuring the time from the time instant where the Boolean input became true |

LogicalDelay | Delay boolean signal |

RSFlipFlop | A basic RS Flip Flop |

TerminateSimulation | Terminate simulation if condition is fulfilled |
