.Modelica.Clocked.ClockSignals.Sampler.SuperSample

Information

This block super-samples the clock input signal u and provides it as clock output signal y.

To be more precise: Clock y is factor-times faster than clock u. The first activation of clock y coincides with the first activation of clock u. The super-sampling factor is defined by Integer parameter factor.

Example

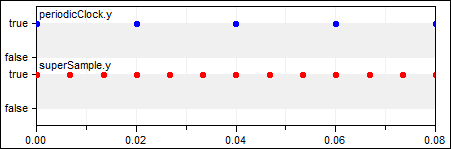

The following example generates a periodic clock of 20 ms period, and then super-samples the resulting clock with a factor of 3:

	model	simulation result

As can be seen, superSample introduces factor-1 additional clock ticks for the output clock y. The super-sampling factor = 3 is displayed in the icon of the superSample block. Note the up-arrow in the icon of the superSample block indicates that clock superSample.y is faster as clock superSample.u.
