blockFractionalDelay
Delay the clocked input signal for a fractional multiple of the sample period
Extends from Clocked.RealSignals.Interfaces.PartialClockedSISO (Block with clocked single input and clocked single output Real signals).
Information
This block delays a signal. Similar to the ShiftSample block the first activation of the clock of the output y is delayed by shiftCounter/resolution*interval(u) relative to the input u (interval(u) is the sample period of the clock associated to input u). However, in contrast to ShiftSample, the block provides a buffer for the input values and truly delays the input signal.
Example
The following
example

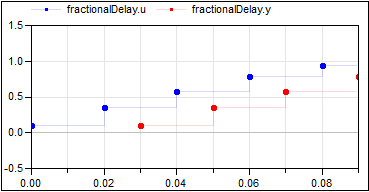

shows how a sample sine signal is delayed.
 |
 |
|
| model | simulation result |
The parameter values shiftCounter=3 and resolution=2 are visible at the bottom of the fractionalDelay block.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Integer | shift | 0 | Delay = interval() * shift/resolution |
| Integer | resolution | 1 | Time quantization resolution of sample interval |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Interfaces.RealInput | u (from PartialClockedSISO) | Connector of clocked, Real input signal | |
| Modelica.Blocks.Interfaces.RealOutput | y (from PartialClockedSISO) | Connector of clocked, Real output signal |
