.Modelica.Clocked.RealSignals.Sampler.AssignClock

Information

This block assigns a clock to the Real input signal u and provides u as output signal y.

Example

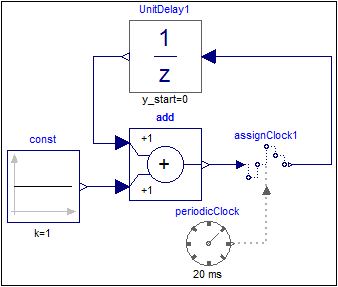

The following example shows a discrete counter. In order to execute the counter with a sample period of 20ms an AssignClock block is used. Due to clock inference all equations within the blocks are deduced to be active at the clock ticks given by the periodicClock block.

	model	simulation result

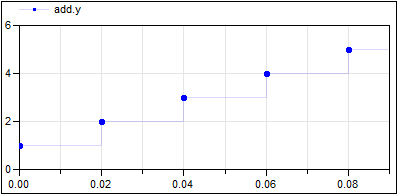

At every clock tick (that is at every 20ms) the output of the unitDelay1 block is incremented by one.
