.Modelica.Clocked.RealSignals.Sampler.SampleVectorizedAndClocked .Modelica.Clocked.RealSignals.Sampler.SampleVectorizedAndClockedThis block is similar to the SampleClocked block. The only difference is that the continuous-time input signal is a vector: All input signals are sampled and are associated with the scalar clock signal provided via the second input.

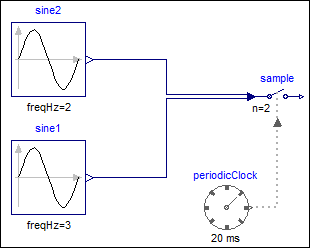

The following
example
has a vector as input, consisting of two different sine signals. These
signals are sampled with a periodic clock of 20 ms period:
 |
 |
|

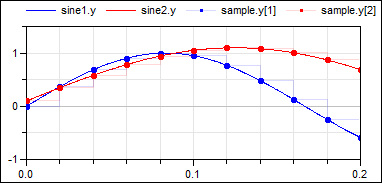

| model | simulation result |
