.Modelica.Clocked.RealSignals.TickBasedSources.Ramp

Generate ramp signal based on counted clock ticks

Information

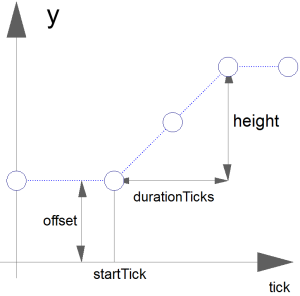

The Real output y is a ramp signal. The signal is defined in terms of clock ticks instead of simulation time:
