.Modelica.ComplexBlocks.Sources.ComplexRampPhasor

Generate a phasor with ramped magnitude and constant angle

Information

The output y is a complex phasor with constant angle and a ramped magnitude.

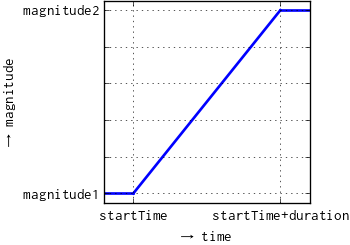

In case of useLogRamp == false the magnitude ramp is linear:


In case of useLogRamp == true the magnitude ramp appears linear on a logarithmic scale:
