.Modelica.Fluid.Dissipation.Utilities.SharedDocumentation.HeatTransfer.Channel.kc_evenGapLaminar

Information

Calculation of the mean convective heat transfer coefficient kc for a laminar fluid flow through an even gap at different fluid flow and heat transfer situations.

Functions kc_evenGapLaminar and kc_evenGapLaminar_KC

There are basically three differences:

• The function kc_evenGapLaminar is using kc_evenGapLaminar_KC but offers additional output variables like e.g. Reynolds number or Nusselt number and failure status (an output of 1 means that the function is not valid for the inputs).
• Generally the function kc_evenGapLaminar_KC is numerically best used for the calculation of the mean convective heat transfer coefficient kc at known mass flow rate.
• You can perform an inverse calculation from kc_evenGapLaminar_KC, where an unknown mass flow rate is calculated out of a given mean convective heat transfer coefficient kc

Restriction

• laminar regime (Reynolds number ≤ 2200)
• developed fluid flow
  • heat transfer from one side of the gap (target=Modelica.Fluid.Dissipation.Utilities.Types.kc_evenGap.DevOne)
  • heat transfer from both sides of the gap (target=Modelica.Fluid.Dissipation.Utilities.Types.kc_evenGap.DevBoth)
• undeveloped fluid flow
  • heat transfer from one side of the gap (target=Modelica.Fluid.Dissipation.Utilities.Types.kc_evenGap.UndevOne)
    • Prandtl number 0.1 ≤ Pr ≤ 10
  • heat transfer from both sides of the gap (target=Modelica.Fluid.Dissipation.Utilities.Types.kc_evenGap.UndevBoth)
    • Prandtl number 0.1 ≤ Pr ≤ 1000

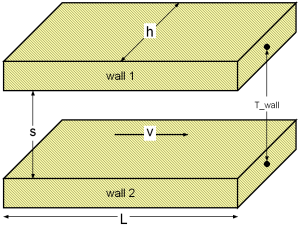

Geometry

Calculation

The mean convective heat transfer coefficient kc for an even gap is calculated through the corresponding Nusselt number Nu_lam according to [VDI 2002, p. Gb 7, eq. 43] :

Nu_lam = [(Nu_1)^3 + (Nu_2)^3 + (Nu_3)^3]^(1/3)

with the corresponding mean convective heat transfer coefficient kc :

kc =  Nu_lam * lambda / d_hyd

with

The summands for the mean Nusselt number Nu_lam at a chosen fluid flow and heat transfer situation are calculated as follows:

• developed fluid flow
  • heat transfer from one side of the gap (target=1)
    • Nu_1 = 4.861
    • Nu_2 = 1.841*(Re*Pr*d_hyd/L)^(1/3)
    • Nu_3 = 0
  • heat transfer from both sides of the gap (target=2)
    • Nu_1 = 7.541
    • Nu_2 = 1.841*(Re*Pr*d_hyd/L)^(1/3)
    • Nu_3 = 0
• undeveloped fluid flow
  • heat transfer from one side of the gap (target=3)
    • Nu_1 = 4.861
    • Nu_2 = 1.841*(Re*Pr*d_hyd/L)^(1/3)
    • Nu_3 = [2/(1+22*Pr)]^(1/6)*(Re*Pr*d_hyd/L)^(1/2)
  • heat transfer from both sides of the gap (target=4)
    • Nu_1 = 7.541
    • Nu_2 = 1.841*(Re*Pr*d_hyd/L)^(1/3)
    • Nu_3 = [2/(1+22*Pr)]^(1/6)*(Re*Pr*d_hyd/L)^(1/2)

Note that the fluid properties shall be calculated with an arithmetic mean temperature out of the fluid flow temperatures at the entrance and the exit of the gap.

Verification

The mean Nusselt number Nu_lam representing the mean convective heat transfer coefficient kc in dependence of the chosen fluid flow and heat transfer situations (targets) is shown in the figure below.

References

Bejan,A.:

Heat transfer handbook. Wiley, 2003.

VDI:

VDI - Wärmeatlas: Berechnungsblätter für den Wärmeübergang. Springer Verlag, 9th edition, 2002.
