.Modelica.Fluid.Dissipation.Utilities.SharedDocumentation.PressureLoss.Orifice.dp_suddenChange

Information

Restriction

This function shall be used within the restricted limits according to the referenced literature.

Smooth surface
Turbulent flow regime
Reynolds number for sudden expansion Re > 3.3e3 [Idelchik 2006, p. 208, diag. 4-1]
Reynolds number for sudden contraction Re > 1e4 [Idelchik 2006, p. 216-217, diag. 4-9]

Geometry

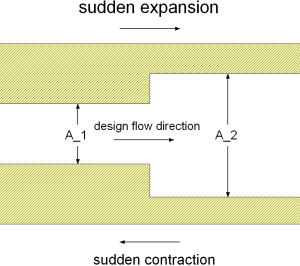

suddenChangeSection

Calculation

The local pressure loss dp is generally determined by:

dp = 0.5 * zeta_LOC * rho * |v_1|*v_1

with

rho	as density of fluid [kg/m3],
v_1	as average flow velocity in small cross sectional area [m/s].
zeta_LOC	as local resistance coefficient [-],

The local resistance coefficient zeta_LOC of a sudden expansion can be calculated for different ratios of cross sectional areas by:

zeta_LOC = (1 - A_1/A_2)^2  [Idelchik 2006, p. 208, diag. 4-1]

and for sudden contraction:

zeta_LOC = 0.5*(1 - A_1/A_2)^0.75  [Idelchik 2006, p. 216-217, diag. 4-9]

with

A_1	small cross sectional area [m^2],
A_2	large cross sectional area [m^2].

Verification

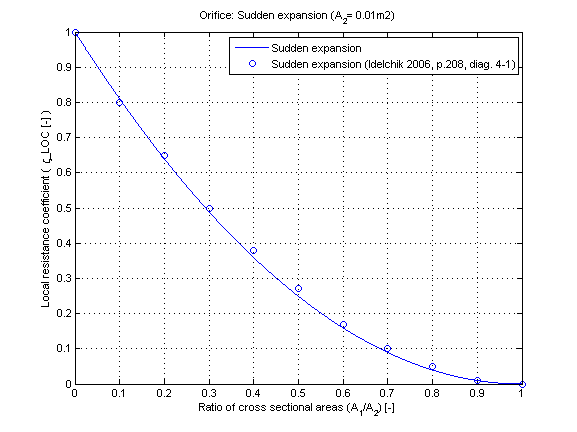

The local resistance coefficient zeta_LOC of a sudden expansion in dependence of the cross sectional area ratio A_1/A_2 is shown in the figure below.

suddenChangeExpansion

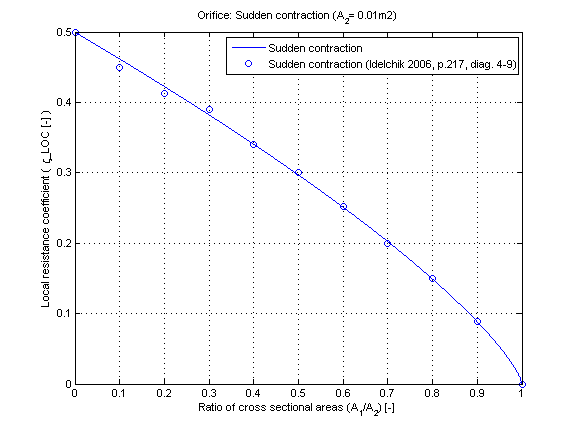

The local resistance coefficient zeta_LOC of a sudden contraction in dependence of the cross sectional area ratio A_1/A_2 is shown in the figure below.

suddenChangeContraction
