.Modelica.Magnetic.FluxTubes.Examples.Hysteresis.SinglePhaseTransformerWithHysteresis2

Information

A simple model of an single-phase transformer (similar to SinglePhaseTransformerWithHysteresis1 but with separate transformer model: Transformer1PhaseWithHysteresis). Use the simulation settings:

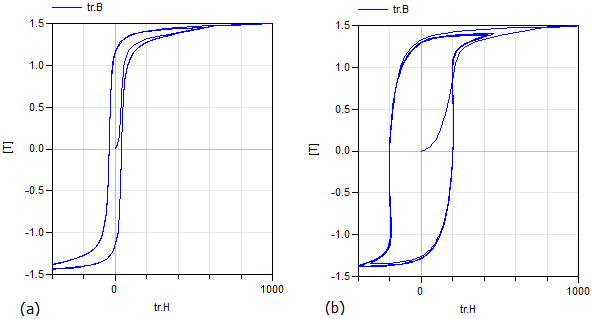

The figure shows the magnetic hysteresis in the transformer core. In (a) the consideration of the eddy currents is switched off, in (b) it is enabled.
