.Modelica.Magnetic.FluxTubes.Material.HysteresisTableData

Information

Material table data for the GenericHystTellinenTable flux tube element. The records contain two data tables tabris and tabfal describing the rising and the falling branch of the hysteresis envelope curve of the corresponding material. The first column is the magnetic field strength H and has to be strictly monotonically increasing. The second column contains the corresponding values of the magnetic fluxdensity B. Both curves may not intersect each other.

Fig. 1 and Fig. 2 show library entries based on own measurements of several steel sheet qualities in two different ranges of the magnetic field strength. For the measurements a 25 cm Epstein frame was used according to DIN EN 60404-2.

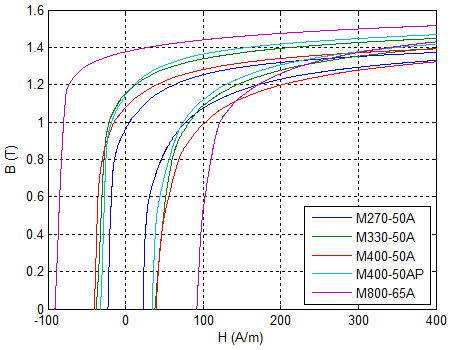

Fig. 1: Static hysteresis envelope curves of several steel sheets

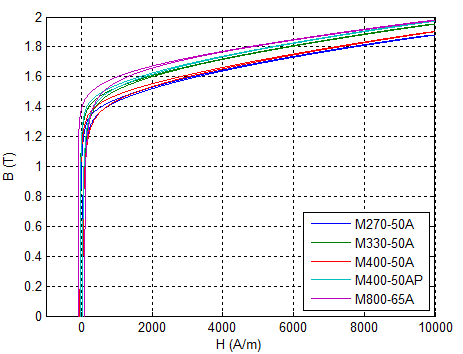

Fig. 2: Static hysteresis envelope curves of several steel sheets

Fig. 3 shows the static hysteresis loop library entries for soft magnetic cobalt-iron-alloys which were extracted from [Va01].

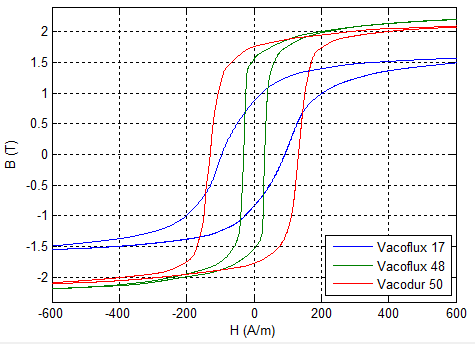

Fig. 3: Soft magnetic cobalt iron library entries [Va01]

Contents

NameDescription
 BaseDataHysteresis table data
 Vacoflux17Vacoflux17
 Vacoflux48Vacoflux48
 Vacodur50Vacodur50
 M270_50AM270-50A
 M330_50AM330-50A
 M400_50AM400-50A
 M400_50APM400-50AP
 M800_65AM800-65A
