modelHollowCylinderRadialFlux
Hollow cylinder with radial flux of fixed shape and linear material characteristics
Extends from BaseClasses.FixedShape (Base class for flux tubes with fixed shape during simulation), Modelica.Magnetic.QuasiStatic.FluxTubes.Icons.HollowCylinderRadialFlux (Icon for cylinder with radial flux).
Information
The radial cylinder model is characterized by the outer diameter,
, the inner diameter,
, length,
, and the angle
. The magnetic reluctance is determined by:
In this model the magnetic flux and the magnetic potential difference, respectively, are radially oriented.

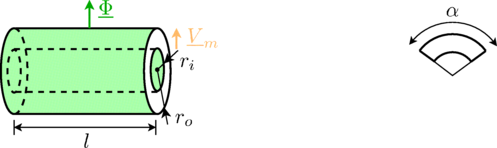

The above figure left shows a radial flux cylinder with
. The figure on the right indicates the central angle in case a cylinder section shall be considered.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| SI.RelativePermeability | mu_rConst (from FixedShape) | 1 | Constant relative permeability |
| SI.Angle | alpha | 2*pi | Central angle |
| Fixed geometry | |||
| SI.Length | l | 0.01 | Width (orthogonal to flux direction) |
| SI.Radius | r_i | 0.01 | Inner radius of hollow cylinder |
| SI.Radius | r_o | 0.02 | Outer radius of hollow cylinder |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| FluxTubes.Interfaces.PositiveMagneticPort | port_p (from TwoPortElementary) | Positive quasi-static magnetic port | |
| FluxTubes.Interfaces.NegativeMagneticPort | port_n (from TwoPortElementary) | Negative quasi-static magnetic port |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| SI.ComplexMagneticPotentialDifference | V_m (from TwoPortElementary) | Magnetic potential difference of both ports | |
| SI.MagneticPotentialDifference | abs_V_m (from TwoPortElementary) | Modelica.ComplexMath.abs(V_m) | Magnitude of complex magnetic potential difference |
| SI.Angle | arg_V_m (from TwoPortElementary) | Modelica.ComplexMath.arg(V_m) | Argument of complex magnetic potential difference |
| SI.ComplexMagneticFlux | Phi (from TwoPortElementary) | Magnetic flux from port_p to port_n | |
| SI.MagneticFlux | abs_Phi (from TwoPortElementary) | Modelica.ComplexMath.abs(Phi) | Magnitude of complex magnetic flux |
| SI.Angle | arg_Phi (from TwoPortElementary) | Modelica.ComplexMath.arg(Phi) | Argument of complex magnetic flux |
| SI.AngularVelocity | omega (from TwoPortElementary) | ||
| SI.Reluctance | R_m (from FixedShape) | Magnetic reluctance | |
| SI.Permeance | G_m (from FixedShape) | Magnetic permeance | |
| SI.ComplexMagneticFluxDensity | B (from FixedShape) | Magnetic flux density (normal component) | |
| SI.MagneticFluxDensity | abs_B (from FixedShape) | Modelica.ComplexMath.abs(B) | Magnitude of complex magnetic flux density |
| SI.Angle | arg_B (from FixedShape) | Modelica.ComplexMath.arg(B) | Argument of complex magnetic flux density |
| SI.CrossSection | A (from FixedShape) | Area of cross section penetrated by magnetic flux | |
| SI.ComplexMagneticFieldStrength | H (from FixedShape) | Magnetic field strength (normal component) | |
| SI.MagneticFieldStrength | abs_H (from FixedShape) | Modelica.ComplexMath.abs(H) | Magnitude of complex magnetic field strength |
| SI.Angle | arg_H (from FixedShape) | Modelica.ComplexMath.arg(H) | Argument of complex magnetic field strength |
| SI.RelativePermeability | mu_r (from FixedShape) | Relative magnetic permeability |
