.Modelica_Noise.Blocks.Examples.NoiseExamples.Distributions

Information

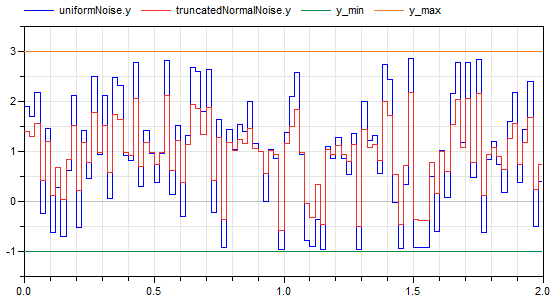

This example demonstrates different noise distributions methods that can be selected for a Noise block. Both noise blocks use samplePeriod = 0.02 s, y_min=-1, y_max=3, and have identical fixedLocalSeed. This means that the same random numbers are drawn for the blocks. However, the random numbers are differently transformed according to the selected distributions (uniform and truncated normal distribution), and therefore the blocks have different output values. Simulation results are shown in the next diagram:

As can be seen, uniform noise is distributed evenly between -1 and 3, and truncated normal distriution has more values centered around the mean value 1.

Revisions

Date	Description
June 22, 2015	Initial version implemented by A. Klöckner, F. v.d. Linden, D. Zimmer, M. Otter. DLR Institute of System Dynamics and Control
