functioncumulative
Cumulative distribution function of uniform distribution
Extends from Modelica_Noise.Math.Distributions.Interfaces.partialCumulative (Common interface of cumulative distribution functions).
Information
Syntax
Uniform.cumulative(u, u_min=0, u_max=1);
Description
This function computes the cumulative distribution function according to a uniform distribution in a band. The returned value y is in the range:
0 ≤ y ≤ 1

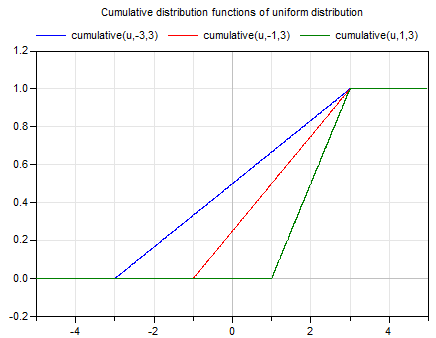

Plot of the function:
For more details, see Wikipedia.
Example
cumulative(0.5) // = 0.5 cumulative(0,-1,1) // = 0.5
See also
Inputs
| Type | Name | Default | Description |
|---|---|---|---|
| Real | u (from partialCumulative) | Value over the real axis (-inf < u < inf) | |
| Real | u_min | 0 | Lower limit of u |
| Real | u_max | 1 | Upper limit of u |
Outputs
| Type | Name | Default | Description |
|---|---|---|---|
| Real | y (from partialCumulative) | Value in the range 0 <= y <= 1 |
Revisions
| Date | Description | ||
|---|---|---|---|
| June 22, 2015 |
|
