blockBandRising
Extends from Modelica_Requirements.Interfaces.PartialCheck (Interfaces and icon for check block).
Information
Syntax
property = BandRising(condition=..., check=..., nRisingMin=1, nRisingMax=2).y;
Description
In every duration where the Boolean input condition is true, a minimum number of nRisingMin edges of the Boolean input check must occur and a maximum number of nRisingMax edges is allowed. The default for nRisingMin=1 (so at least one rising edge), whereas the default for nRisingMax=2 (so at most two rising edges). If condition = true and nRisingMin = 0, then Property output y is initialized to Satisfied, otherwise to Undecided.
Violated, Undecided, and Satisfied are elements of enumeration Property.
Example

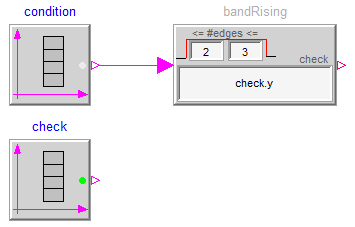

This block is demonstrated with the following example:
results in
 |
|

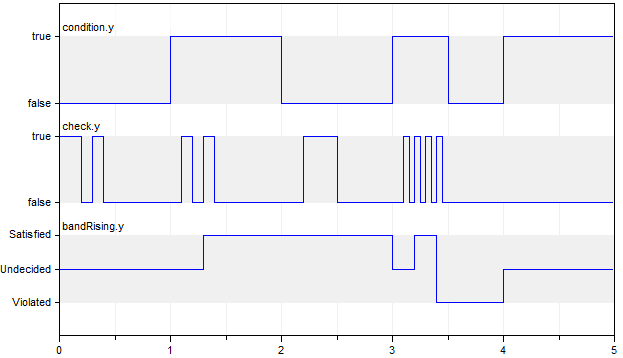

| simulation result |
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Integer | nRisingMin | 1 | Minimum number of check rising edges |
| Integer | nRisingMax | 2 | Maximum number of check rising edges |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Interfaces.BooleanInput | condition (from PartialCheck) | Boolean input condition signal | |
| Modelica_Requirements.Interfaces.PropertyOutput | y (from PartialCheck) | Property output signal |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Boolean | check (from PartialCheck) | Boolean to check |
