blockDuring
In every true condition phase, check must be true
Extends from Modelica_Requirements.Interfaces.PartialCheck (Interfaces and icon for check block).
Information
Syntax
property = During(condition=..., check=...).y;
Description
In every duration where the Boolean input condition is true, the Boolean input check must be true. During a true condition phase, property output y = Satisfied if check = true, and Violated if check = false. During a false condition phase, property output y = Undecided.
Violated, Undecided, and Satisfied are elements of enumeration Property.
Example

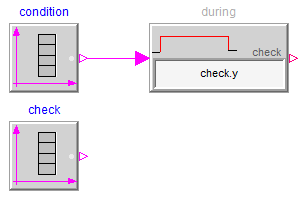

This block is demonstrated with the following example:

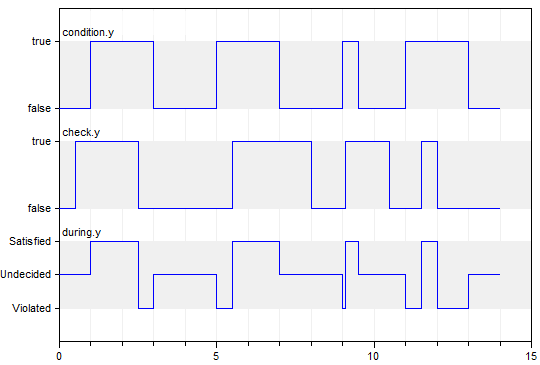

results in
 |
|
| simulation result |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Interfaces.BooleanInput | condition (from PartialCheck) | Boolean input condition signal | |
| Modelica_Requirements.Interfaces.PropertyOutput | y (from PartialCheck) | Property output signal |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Boolean | check (from PartialCheck) | Boolean to check |
