blockMinDuration
Extends from Modelica_Requirements.Interfaces.PartialCheck (Interfaces and icon for check block).
Information
Syntax
property = MinDuration(condition=..., check=..., durationMin=...).y;
Description
In every duration where the Boolean input condition is true, the Boolean input check must be true for at least the time span defined by parameter durationMin. Whenever this property is fulfilled, property output y = Satisfied. If this property is not fulfilled at the end of a true condition phase, property output y = Violated. At initialization and when entering a true condition phase, property output y = Undecided. Output y keeps its value, until one of the above conditions occur.
Violated, Undecided, and Satisfied are elements of enumeration Property.
Example

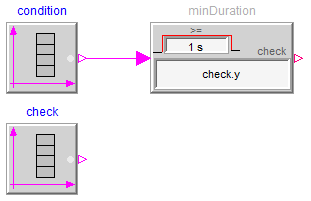

This block is demonstrated with the following example:

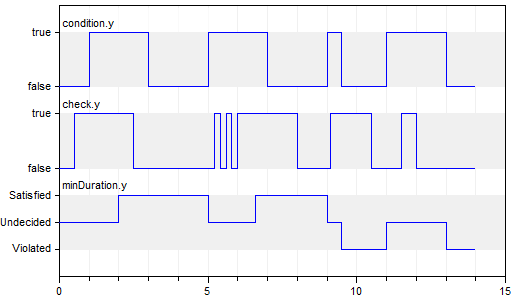

results in
 |
|
| simulation result |
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.Time | durationMin | Minimum duration in true condition phase |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Interfaces.BooleanInput | condition (from PartialCheck) | Boolean input condition signal | |
| Modelica_Requirements.Interfaces.PropertyOutput | y (from PartialCheck) | Property output signal |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Boolean | check (from PartialCheck) | Boolean to check |
