blockWhenFalling
When condition input has a falling edge, check must be true
Extends from Modelica_Requirements.Interfaces.PartialCheck (Interfaces and icon for check block).
Information
Syntax
property = WhenFalling(condition=..., check=...).y;
Description
At the time instants where condition has a falling edge, property is set to "BooleanToProperty(check)" (so either Satisfied or Violated) and keeps this value until the next falling edge. Before the first falling edge, property = Undecided. If condition = false during initialization, property = toProperty(check) at initialization.
Violated, Undecided, and Satisfied are elements of enumeration Property.
Example
The property is demonstrated with the following example:
results in
 |
|

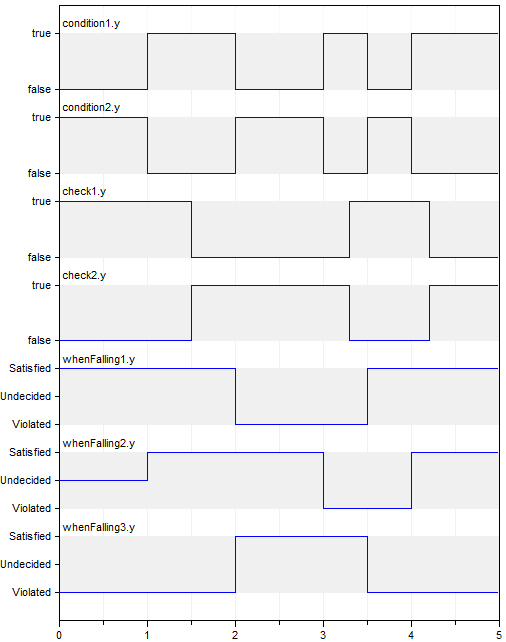

| simulation result |
