blockMaxRisingFrequency

In every sliding time window, the mean frequency of the check rising edges is limited

Extends from Interfaces.PartialCheckInSlidingWindowWithBooleanOutput (Interfaces and icon for check block that evaluates a property in a sliding time window and returns the result as Boolean).

Information

Syntax

freqLimited = MaxRisingFrequency(check=..., window=..., freqHzMeanMax=...).y;

Description

In any (sliding) time window of length window, the mean frequency of the rising edges of Boolean input check is limited by freqHzMeanMax. Therefore, in any sliding window the following constraint shall hold:

if nRising > 1 then
  freqHzMean = 1/(window/(nRising-1));
else
  freqHzMean = 0
end if;

freqHzMean ≤ freqHzMax

where nRising is the number of rising edges of check in the last time window of length window. The mean frequency over the sliding time window is also provided as additional output signal freqHzMean. If the mean frequency is not larger as freqHzMeanMax, output y is set to true, otherwise to y = false.

Example

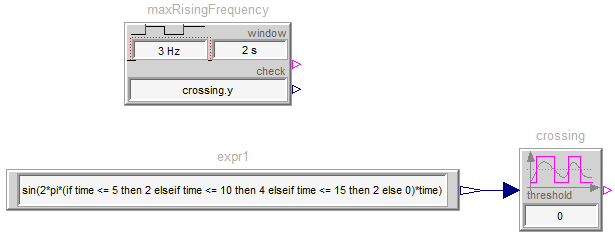

The property is demonstrated with the following example calling the block as:

results in

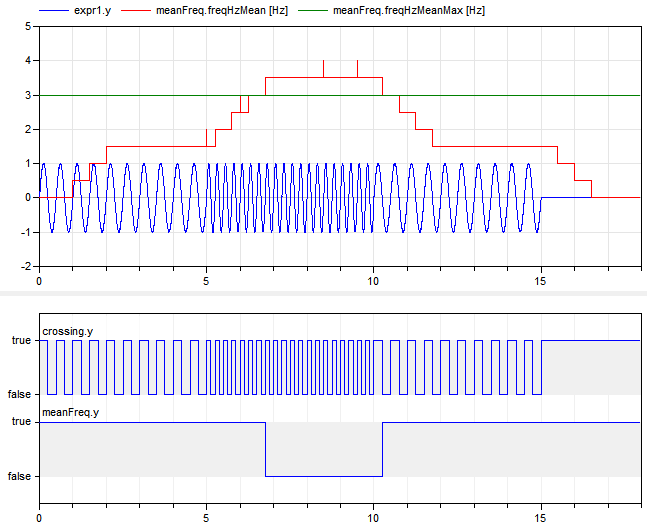

	simulation result

Parameters

Type	Name	Default	Description
Modelica.Units.SI.Time	window (from PartialCheckInSlidingWindowWithBooleanOutput)		Length of sliding time window (> 0)
Modelica.Units.SI.Frequency	freqHzMeanMax		Maximum allowed mean frequency of rising edges in sliding time window

Connectors

Type	Name	Default	Description
Modelica.Blocks.Interfaces.BooleanOutput	y (from PartialCheckInSlidingWindowWithBooleanOutput)		= true if property satisfied, otherwise false
Modelica.Blocks.Interfaces.RealOutput	freqHzMean		Mean frequency of the rising edges in sliding time window

Components

Type	Name	Default	Description
Boolean	check (from PartialCheckInSlidingWindowWithBooleanOutput)		Boolean to check

Name	Description
meanFrequencyprotected	Return mean frequency
