modelMaximumCabinDissipatedPowerIncrease
Requirement: The dissipated power of cabin area is limited to ensure passenger comfort
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
This example demonstrates the modeling and verification of the following aircraft requirement:
Requirement:
In the cabin area the dissipated power should not increase more than 2% per hour (to ensure passenger comfort).
This requirement can be modelled with the ChecksInSlidingWindow.MaxPercentageIncrease block.

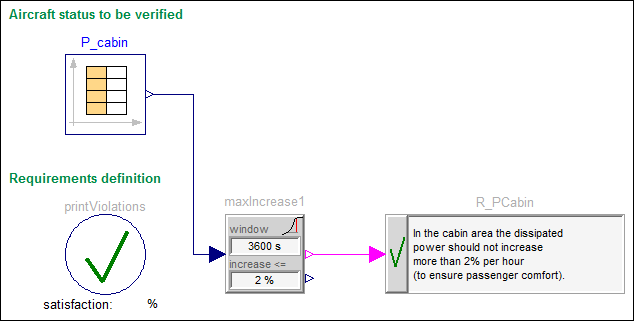

Setup of this example:
results in
 |
|
| simulation result |
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Real | P_RoClim | 2/100 |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica_Requirements.Verify.PrintViolations | printViolations | ||
| Verify.BooleanRequirement | Requirement_CabinDissipatedPower | ||
| ChecksInSlidingWindow.MaxPercentageIncrease | maxIncrease1 | ||
| Modelica.Blocks.Sources.CombiTimeTable | P_cabin |
