modelMaximumCabinTemperatureIncrease
Requirement: The temperature increase of the cabin area is limited to ensure passenger comfort
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
This example demonstrates the modeling and verification of the following aircraft requirement:
Requirement:
In the cabin area, the temperature increase should not exceed 3°C per hour.
This requirement can be modelled with the ChecksInSlidingWindow.MaxIncrease block.

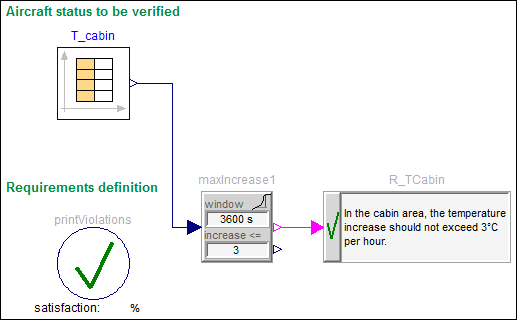

Setup of this example:

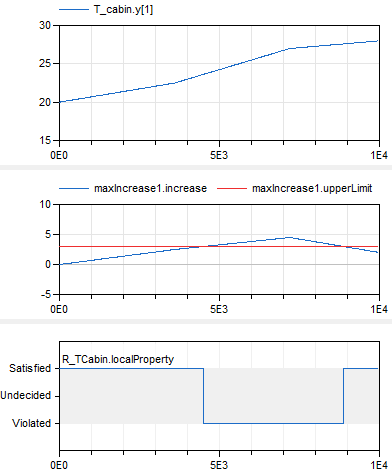

results in
 |
|
| simulation result |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica_Requirements.Verify.PrintViolations | printViolations | ||
| Verify.BooleanRequirement | R_TCabin | ||
| Modelica.Blocks.Sources.CombiTimeTable | T_cabin | ||
| ChecksInSlidingWindow.MaxIncrease | maxIncrease |
