modelBandDuration
Example for BandDuration (in every true condition phase, check must be true for at least a minimum duration and at most a maximum duration)
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information

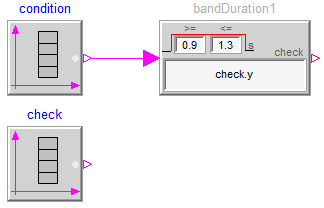

Using check block BandDuration as

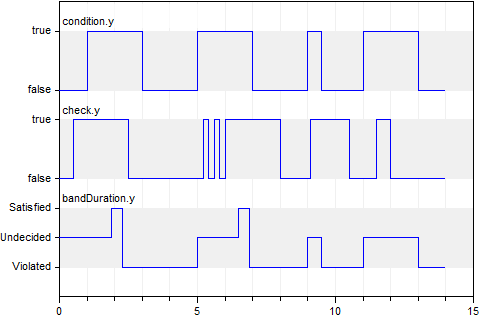

results in
 |
|
| simulation result |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Sources.BooleanTable | condition | ||
| Modelica.Blocks.Sources.BooleanTable | check | ||
| Modelica_Requirements.ChecksInFixedWindow.BandDuration | bandDuration1 |
