modelMaxDuration
Example for MaxDuration (in every true condition phase, check must be true for at most the defined duration)
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
Using check block MaxDuration as

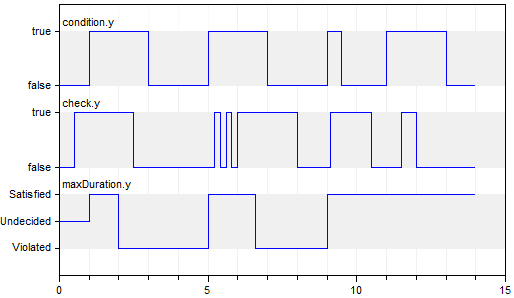

results in
 |
|
| simulation result |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Sources.BooleanTable | condition | ||
| Modelica.Blocks.Sources.BooleanTable | check | ||
| Modelica_Requirements.ChecksInFixedWindow.MaxDuration | maxDuration |
