modelMinRising
Example for MinRising (in every true condition phase, a minimum number of check rising edges must occur)
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information

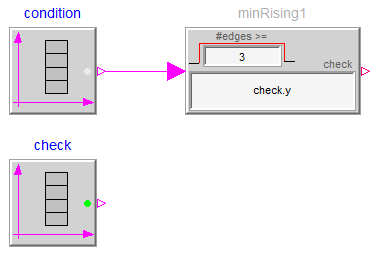

Using check block MinRising as

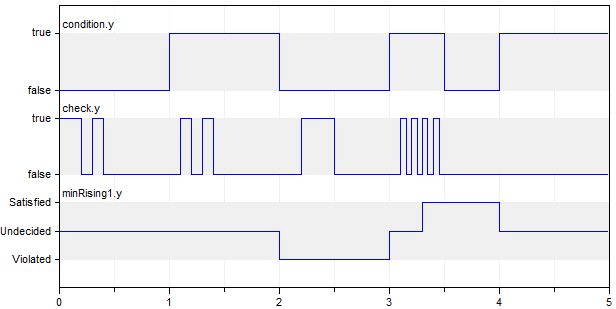

results in
 |
|
| simulation result |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Sources.BooleanTable | condition | ||
| Modelica.Blocks.Sources.BooleanTable | check | ||
| Modelica_Requirements.ChecksInFixedWindow.MinRising | minRising1 |
