modelNoRising
Example for NoRising (in every true condition phase, no rising edge of check is allowed)
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information

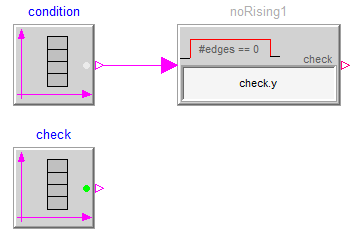

Using check block NoRising as

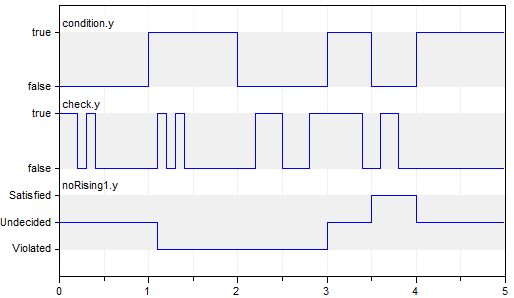

results in
 |
|
| simulation result |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Sources.BooleanTable | condition | ||
| Modelica.Blocks.Sources.BooleanTable | check | ||
| Modelica_Requirements.ChecksInFixedWindow.NoRising | noRising1 |
