modelIntegrator
Example for Integrator (output is the integral over the input, as long as input active is true)
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
Using signal analysis block Integrator as
results in
 |
|

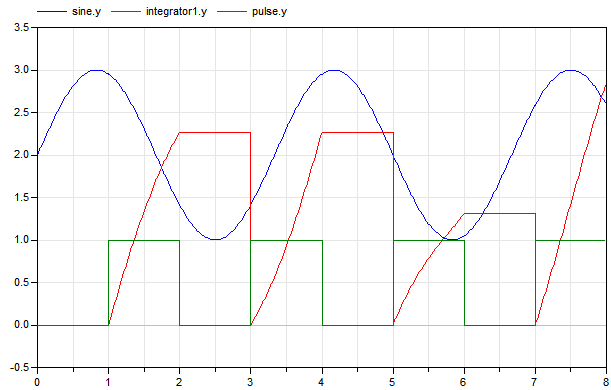

| simulation result |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Sources.Sine | sine | ||
| Modelica.Blocks.Sources.BooleanPulse | pulse | ||
| Modelica_Requirements.SignalAnalysis.TriggeredIntegrator | integrator1 |
