.Modelica_StateGraph2.Blocks.MathBoolean.OnDelay

Delay a rising edge of the input, but do not delay a falling edge.

Information

A rising edge of the Boolean input u gives a delayed output. A falling edge of the input is immediately given to the output.

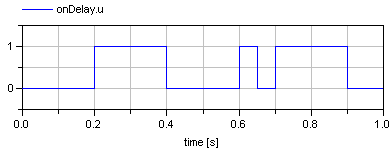

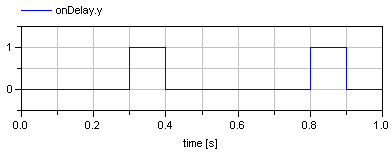

Simulation results of a typical example with a delay time of 0.1 s is shown in the next figure.
