Simple example of a rotational clock with variable trigger interval and
switching rotation-direction.
Simple example of a rotational clock with variable trigger interval and
switching rotation-direction. The input rotation is just sinodical,
switching direction every half second. The trigger interval is changed with

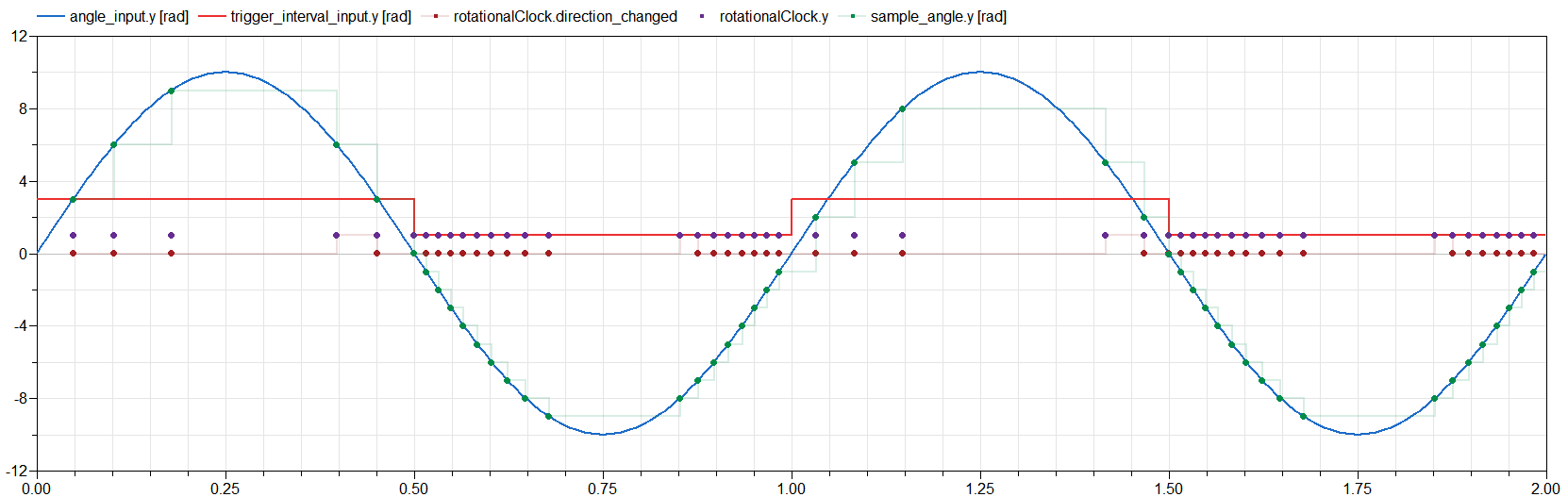

the same pace; every half second it is doubled or halfed respectively. The
generated clocked signals are therefore:
.
