packagePNlib
Version 3.0.0
Uses Modelica 4.0.0.
Information
Free Modelica library for modelling xHPN.
Library description

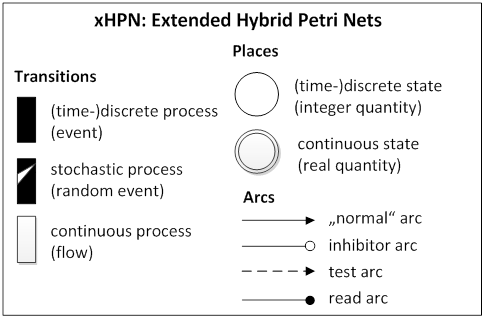

The advanced Petri Net library, called PNlib, enables the modeling of extended hybrid Petri Nets (xHPN). It comprises
- discrete (PD) and continuous places (PC),
- discrete (TD), stochastic (TS), and continuous transitions (TC), and
- test (TA), inhibitor (IA), and read arcs (RA).
The main package PNlib is divided into the following sub-packages:
- Interfaces: contains the connectors of the Petri net component models.
- Blocks: contains blocks with specific procedures that are used in the Petri net component models.
- Functions: contains functions with specific algorithmic procedures which are used in the Petri net component models.
- Constants: contains constants which are used in the Petri net component models.
- Examples: contains several examples and unit tests.
License
This package is licensed with the 3-Clause BSD License.
Development and contribution
Hochschule Bielefeld - University of Applied Sciences and ArtsFaculty of Engineering and Mathematics
- Sabrina Proß
- Lennart Ochel
- Timo Lask
- Bernhard Bachmann
You may report feedback, issues or feature-requests using GitHub Issues.
Contents
| Name | Description |
|---|---|
 UsersGuide | Package containing explanations, references and contact information. |
 Examples | |
 Components | Contains component models to compose models of petri nets. |
 Interfaces | contains the connectors for the Petri net component models |
| Blocks | contains blocks with specific procedures that are used in the Petri net component models |
| Functions | contains functions with specific algorithmic procedures which are used in the Petri net component models |
| Constants | contains constants which are used in the Petri net component models |
| Types | contains Types which are used in the Petri net component models |
