.PVSystems.Examples.Verification.PLLVerification .PVSystems.Examples.Verification.PLLVerificationThis simple example provides a sinusoidal input to the PLL block and applies the output provided by the PLL, the calculated phase of the input sine, to drive a sine block so that the synchronization capabilities of the PLL can be visualized.

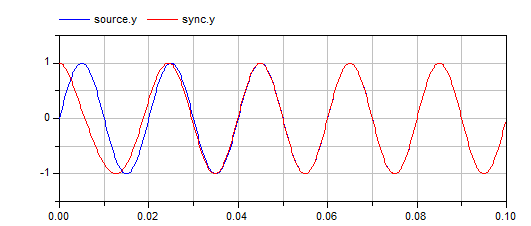

Run the model and plot the output of the sinusoidal source and the output of the sine block to see how, after some short transient, the PLL successfully follows the reference:
