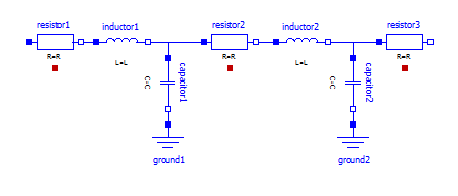

.ScalableTestSuite.Electrical.TransmissionLine.Models.TransmissionLine .ScalableTestSuite.Electrical.TransmissionLine.Models.TransmissionLineIn the figure, it is given an example of the transmission line that is implemented which consists of a resistor, an inductor and a capacitor within each segment. Moreover, transmission line is implemented by connecting each segment together. In the figure, resistor1, inductor1 and capacitor1 describes the first segment and it is connected to second segment which has the same components as the first segment and so on. It transmits the electrical signal from a source to a load.
| Parameters | Comment |
|---|---|
| N | number of segments |
| r | resistance per meter |
| l | inductance per meter |
| c | capacitance per meter |
| length | length of the transmission line |
