Ideal DC Motor
Extends from Servomechanisms.Utilities.MotorIcon (This icon will be removed in future Modelica versions.), Servomechanisms.Utilities.IconName.
Information
General
This is the model of a permanent magnet DC motor, one of the most common electromechanical actuator with caractheristics as low inductance and low friction.
Implementation
IdealDCMotor is based upon the mathematical model of a permanent magnet dc motor. Using elements from MSL the model was developed to represent the mathematical equations:
Notes
- The voltage should be applied on the electrical interfaces pin_p and pin_n for example with and electrical voltage source Modelica.Electrical.Analog.Sources .
- This model is linear
- All the parameters and variables are in SI units
- Has angle and speed sensors as real outputs .
Examples

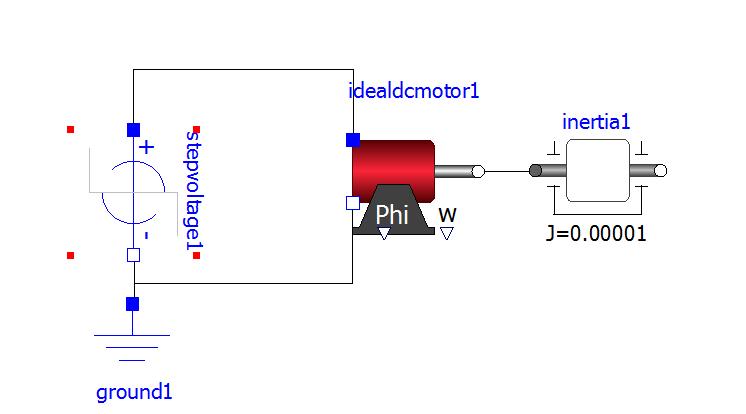

An example of usage with voltage source, inertial load, and default parameters:

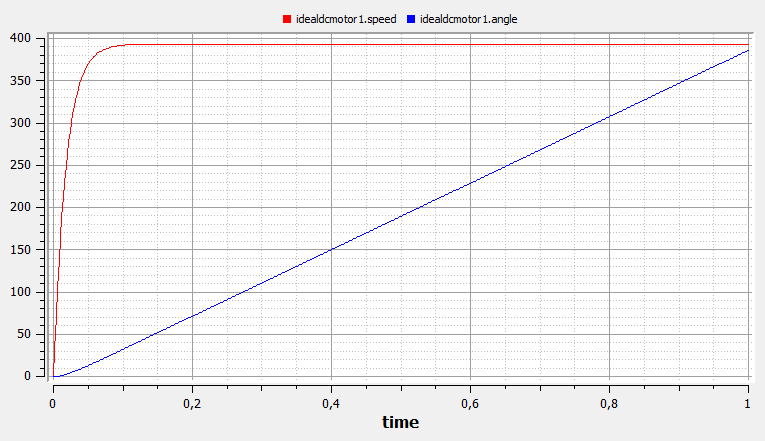

Results:
See also
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| SI.Resistance | R | 0.128 | Armature Resistance |
| SI.Inductance | L | 0.000062 | Armature Inductance |
| SI.ElectricalTorqueConstant | kt | 0.0305 | Torque Constant |
| SI.Inertia | J | 0.000121 | Rotor Inertia |
| SI.RotationalDampingConstant | b | 0 | Damping Factor |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Mechanics.Rotational.Interfaces.Flange_b | flange_b | ||
| Modelica.Electrical.Analog.Interfaces.NegativePin | pin_n | ||
| Modelica.Electrical.Analog.Interfaces.PositivePin | pin_p | ||
| Modelica.Blocks.Interfaces.RealOutput | angle | ||
| Modelica.Blocks.Interfaces.RealOutput | speed |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Electrical.Analog.Basic.Resistor | resistor | ||
| Modelica.Electrical.Analog.Basic.Inductor | inductor | ||
| Modelica.Electrical.Analog.Basic.RotationalEMF | emf | ||
| Modelica.Mechanics.Rotational.Components.Inertia | inertia | ||
| Modelica.Mechanics.Rotational.Components.Damper | damper | ||
| Modelica.Mechanics.Rotational.Components.Fixed | fixed | ||
| Modelica.Mechanics.Rotational.Sensors.AngleSensor | anglesensor | ||
| Modelica.Mechanics.Rotational.Sensors.SpeedSensor | speedsensor |
