recordStratos25slash1to8

Pump coefficients of a Wilo Stratos 25/1-8 pump

Extends from ThermofluidStream.Processes.Internal.CentrifugalPump.Coefficients.GenericPump (Generic coefficient record for centrifugal pumps).

Information

Data sheet of Wilo Stratos 25/1-8

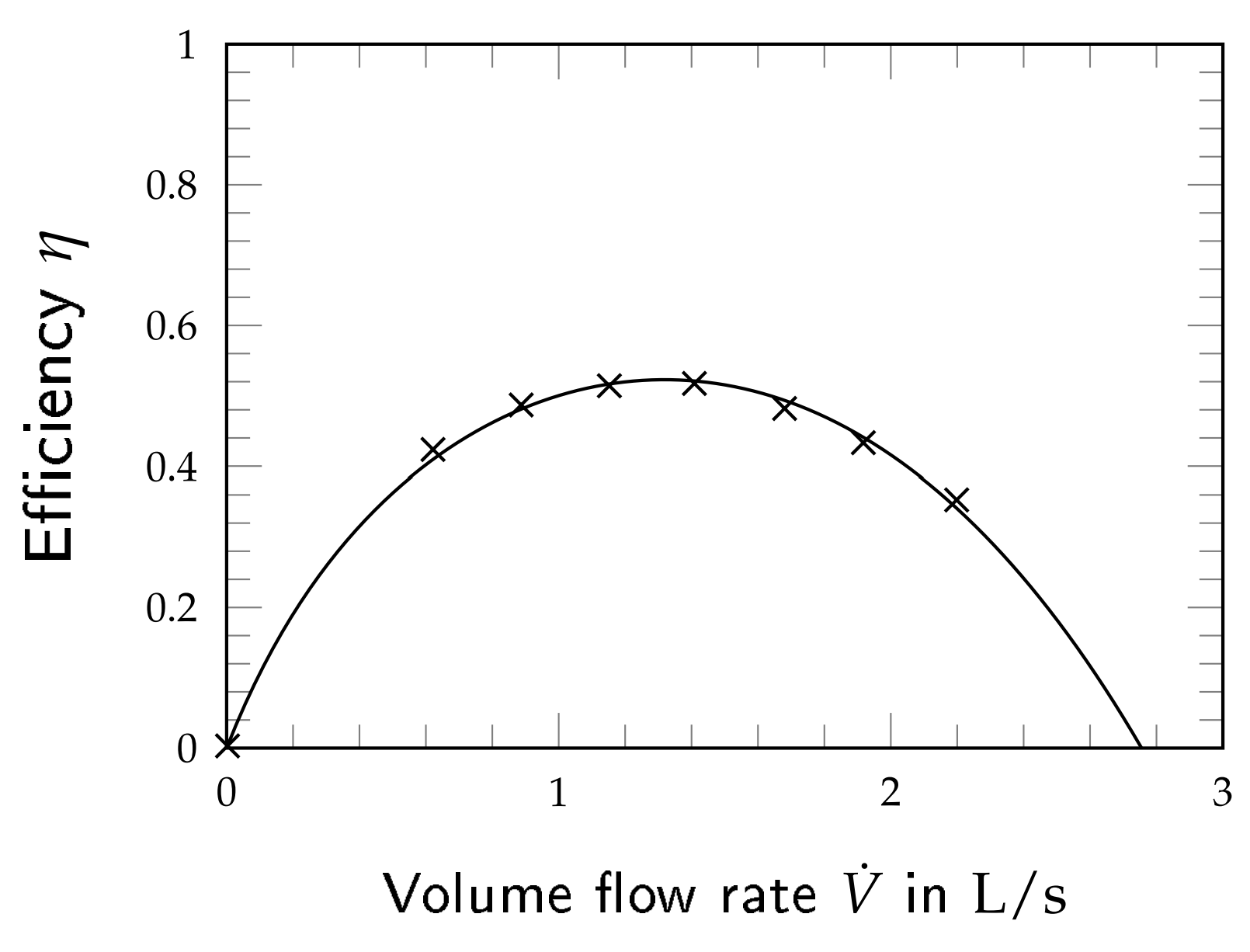

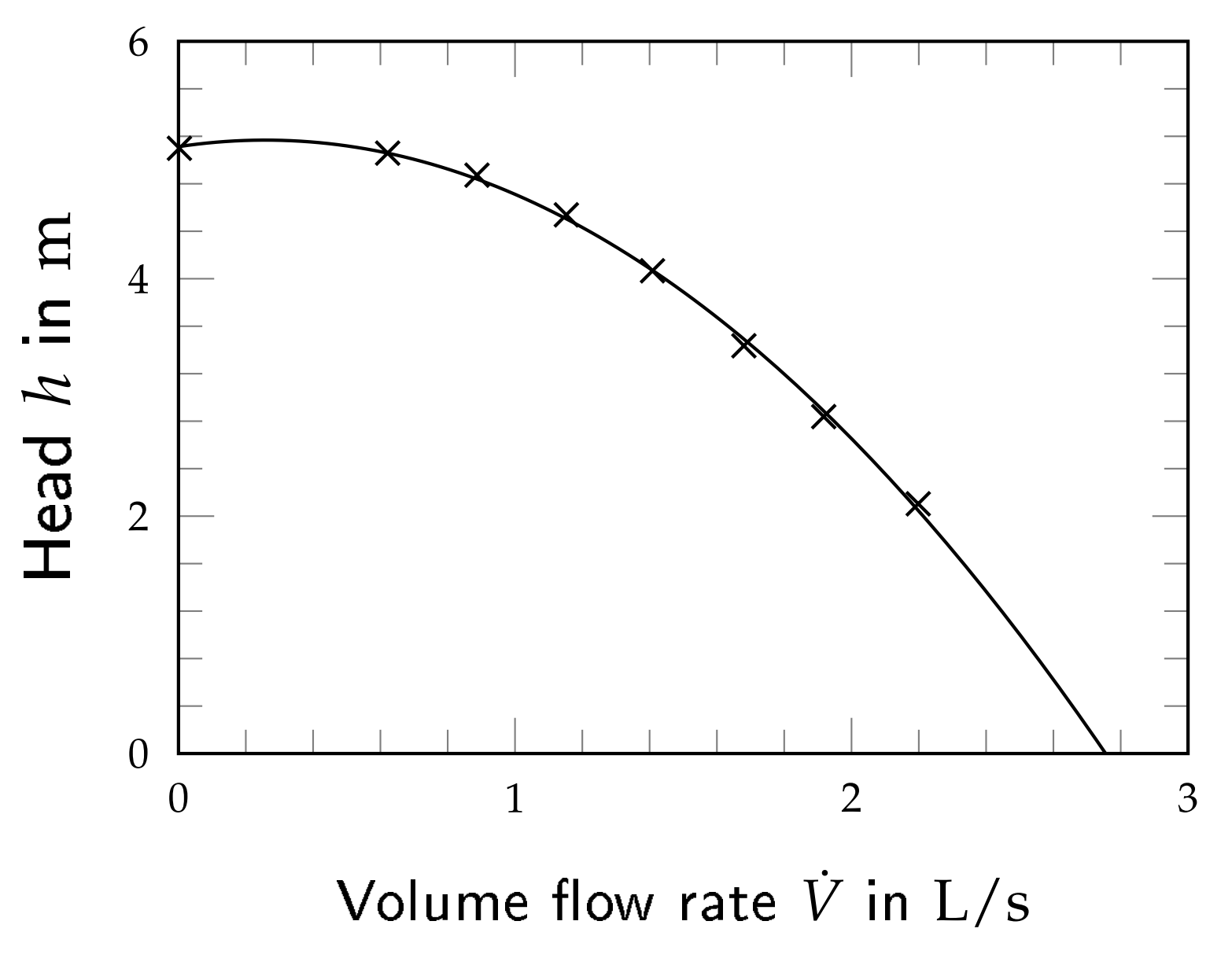

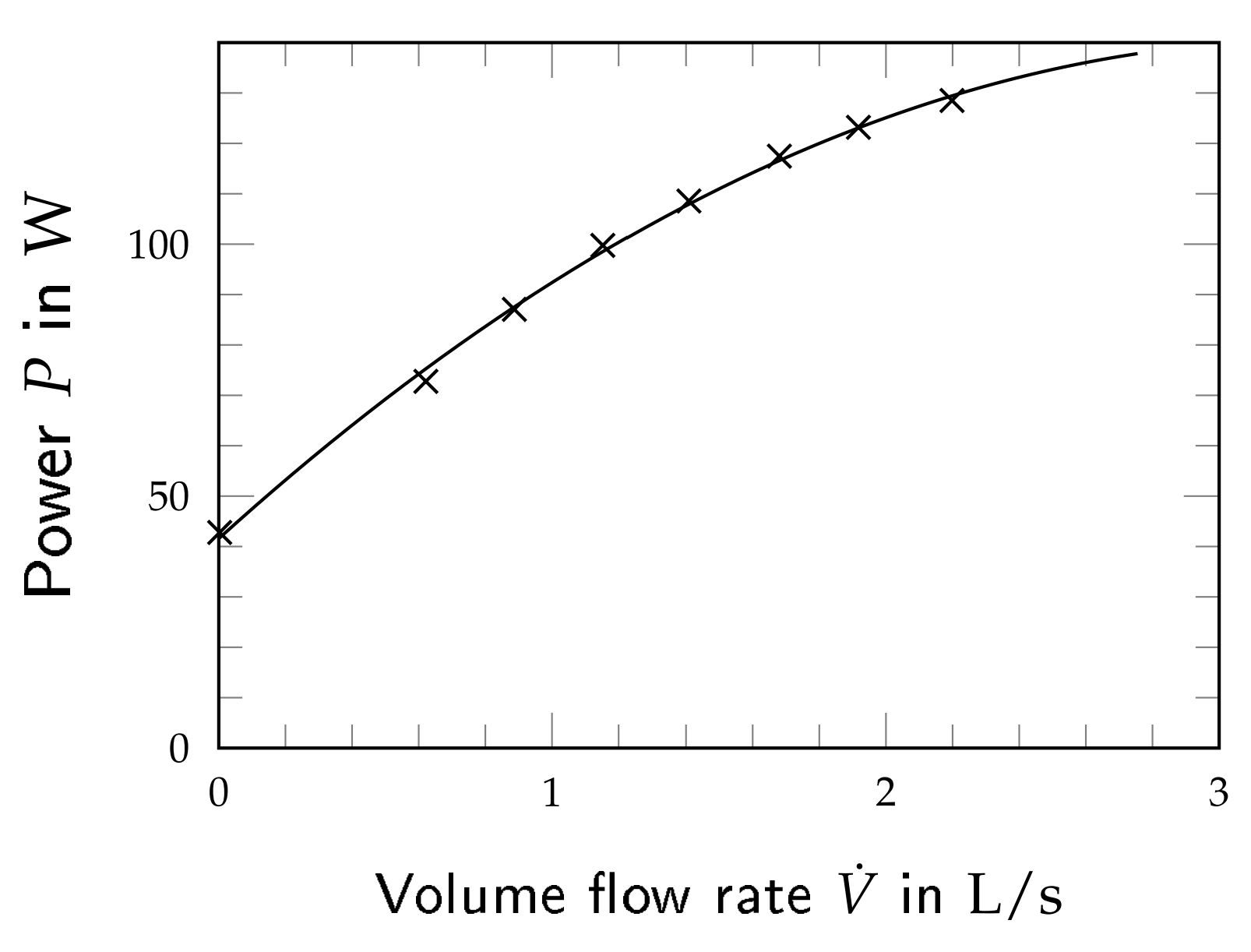

Wilo Stratos 25/1-8 head Wilo Stratos 25/1-8 power Wilo Stratos 25/1-8 efficiency

Parameters

TypeNameDefaultDescription
SI.Densityrho_ref (from GenericPump)1000Reference density
SI.AngularVelocityw_ref (from GenericPump)314.1592653589793Reference angular velocity
SI.VolumeFlowRateV_flow_peak (from GenericPump)0Volume flow rate at peak efficiency
BooleansetHead (from GenericPump)true= true, if reference head shall be given (= false, if reference pressure rise shall be given instead)
SI.Heighthead_peak (from GenericPump)0Head at peak efficiency
SI.PressureDifferencedp_peak (from GenericPump)0Pressure rise at peak efficiency
Realeta_peak (from GenericPump)0.8Peak efficiency
RealV_0n (from GenericPump)1.946Normalized flow V_flow/V_flow_peak at zero head (see doku)
Realh_0n (from GenericPump)1.273Normalized head h/h_peak at zero flow (see doku)
RealP_0n (from GenericPump)0.499Normalized power P/P_peak at zero flow (see doku)
SI.Heighthead_ref_internal (from GenericPump)if setHead then head_peak else dp_peak/(Modelica.Constants.g_n*rho_ref)

Revisions

  • June 17, 2024, by Raphael Gebhart:
    Transferred from Buildings Library to ThermofluidStream Library.
  • March 29, 2023, by Hongxiang Fu:
    Deleted angular speed parameters with the unit rpm. This is for IBPSA, #1704.
  • October 14, 2021, by Hongxiang Fu:
    Rewrote the statements using use_powerCharacteristic to support the implementation of Buildings.Fluid.Movers.BaseClasses.Euler. This is for #2668.
  • February 17, 2016, by Michael Wetter:
    Updated parameter names for #396.
  • December 12, 2014, by Michael Wetter:
    Added defaultComponentPrefixes and defaultComponentName annotations.
  • April 22, 2014 by Filip Jorissen:
    Initial version
