recordStratos25slash1to4
Pump data for a Wilo Stratos 25/1-4 pump
Extends from ThermofluidStream.Processes.Internal.CentrifugalPump.Measurements.GenericPump (Generic measurement data record for centrifugal pumps).
Information

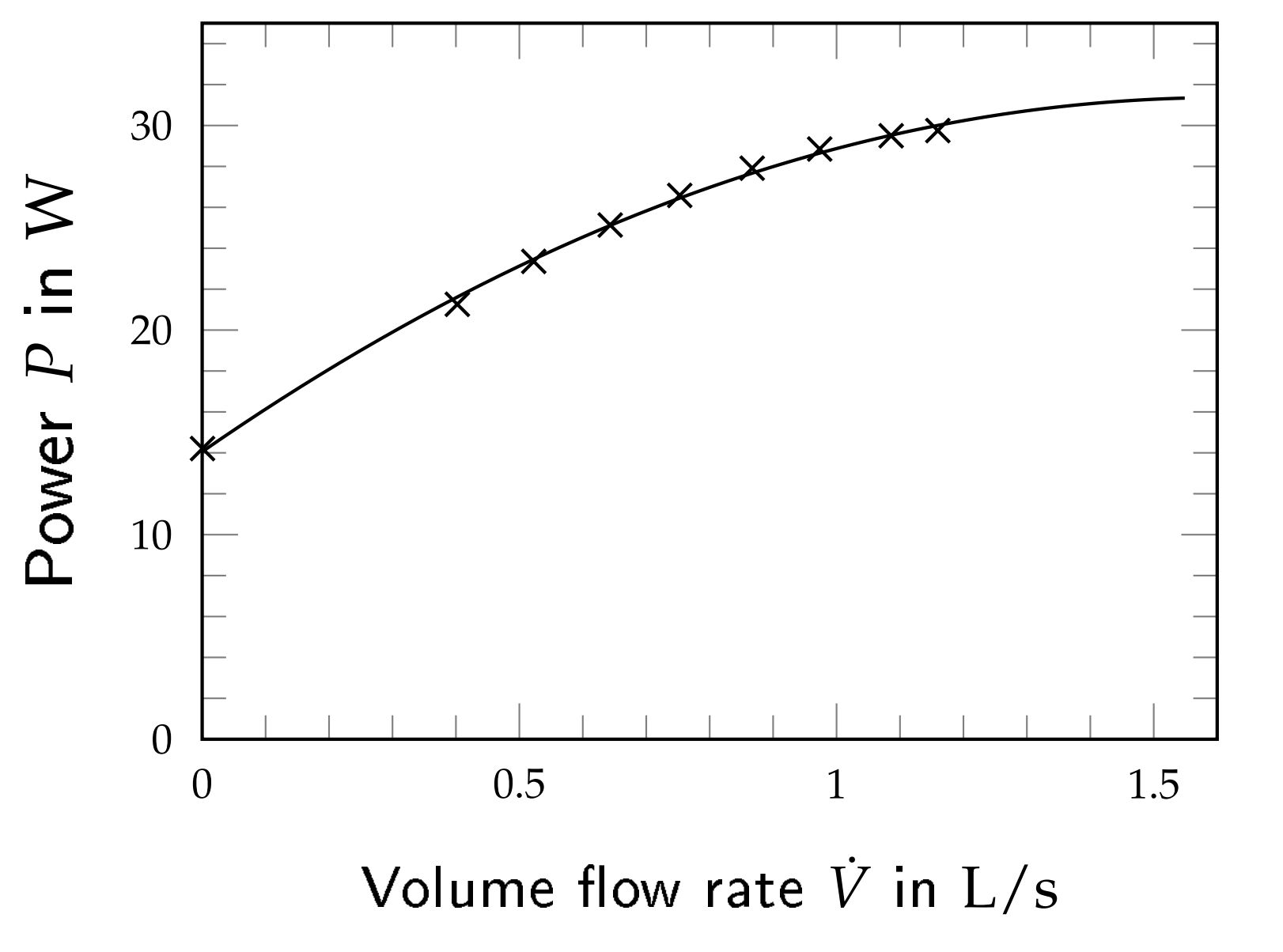

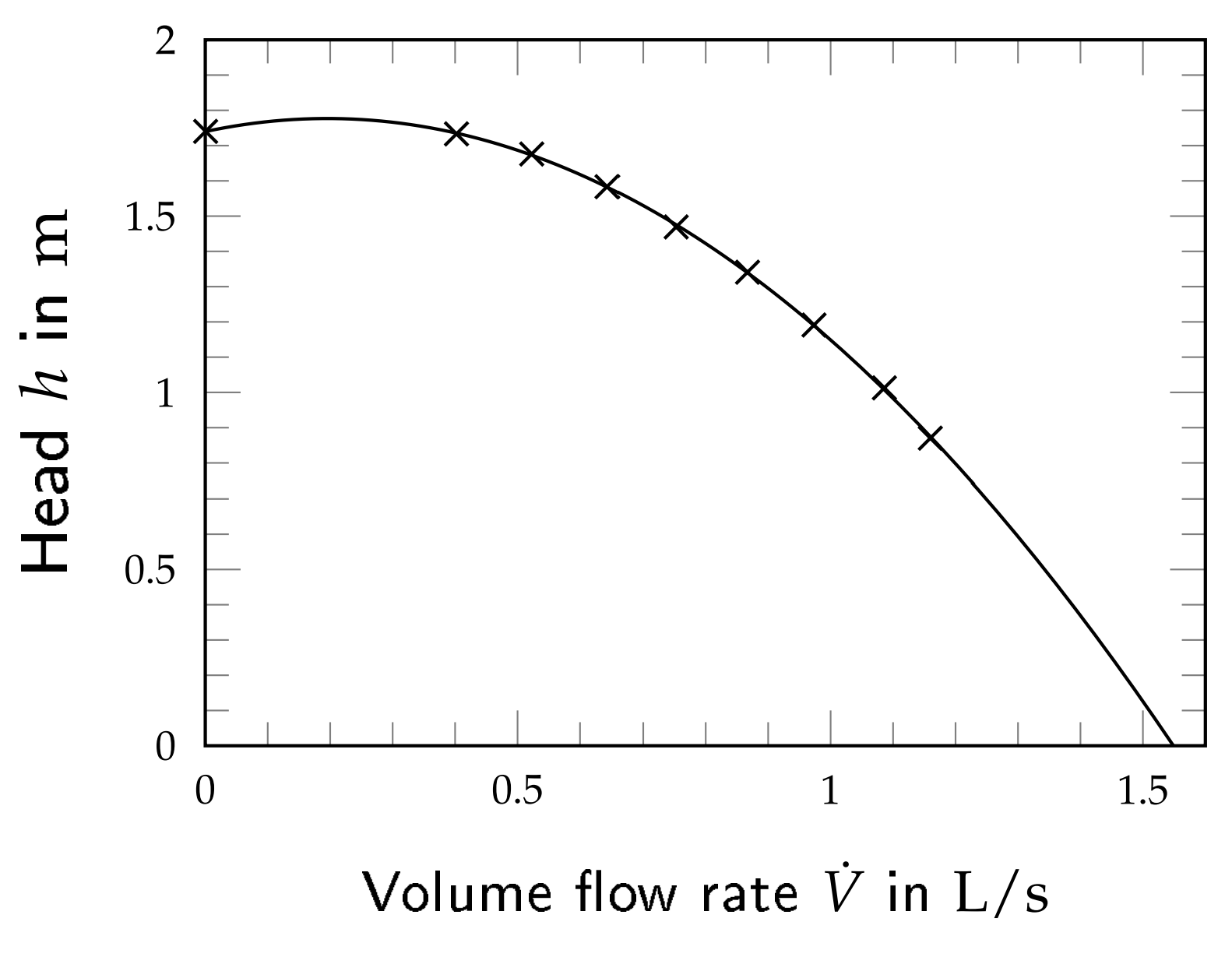

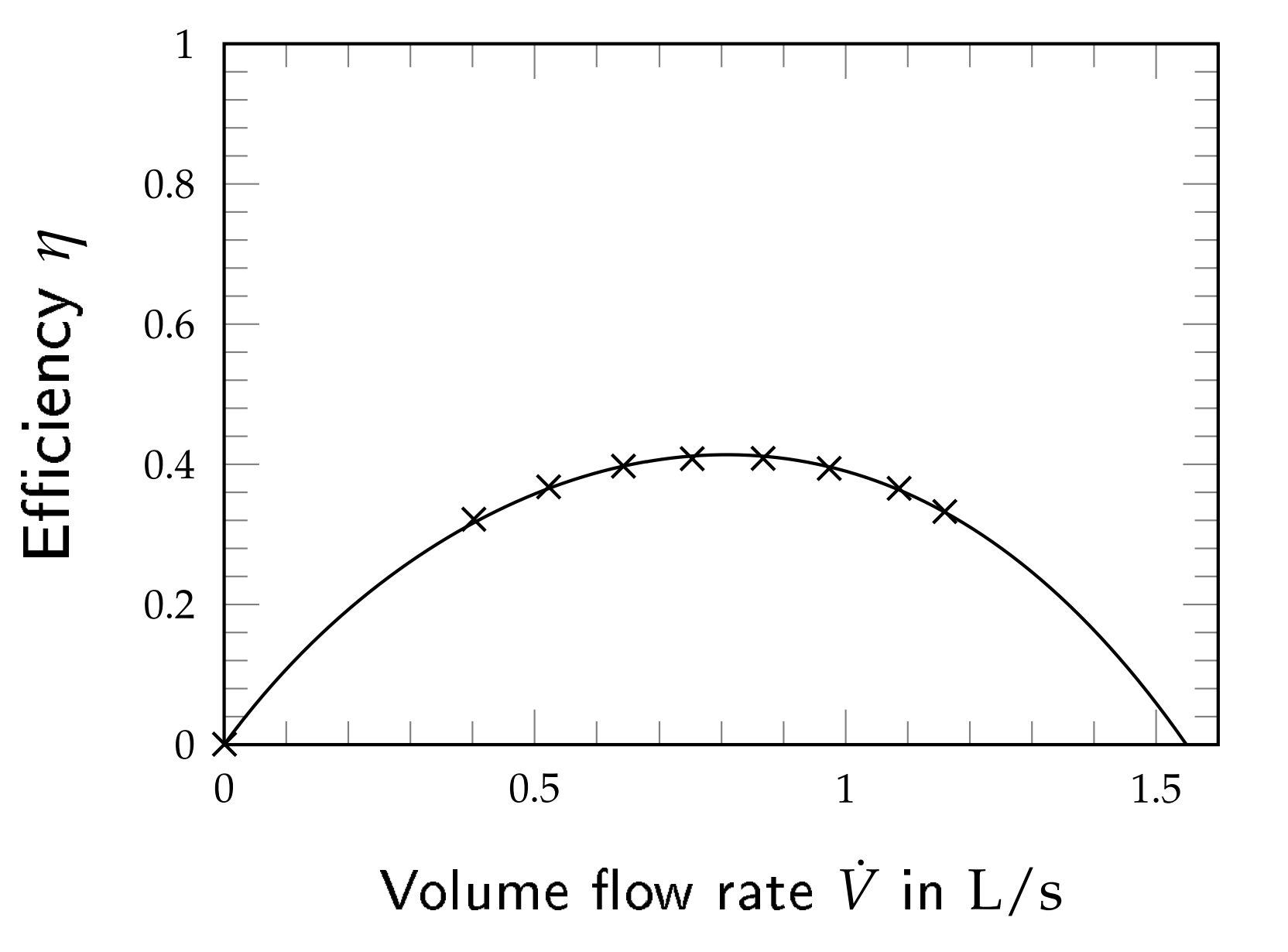

Data sheet of Wilo Stratos 25/1-4
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| SI.Density | rho_ref (from GenericPump) | 1000 | Reference density |
| SI.AngularVelocity | w_ref (from GenericPump) | 314.1592653589793 | Reference angular velocity |
| Integer | N (from GenericPump) | size(V_flow, 1) | Number of data points |
| Volume flow rate | |||
| SI.VolumeFlowRate[:] | V_flow (from GenericPump) | {0, 2.777777777778e-3, 4.166666666667e-3} | Volume flow rate data points |
| Head/Pressure rise | |||
| Boolean | setHead (from GenericPump) | true | = true, if head data points shall be given (= false, if pressure difference shall be given instead) |
| SI.Height[:] | head (from GenericPump) | {10, 5, 0} | Head data points |
| SI.PressureDifference[:] | dp (from GenericPump) | {1e5, 0.5e5, 0} | Pressure rise data points |
| Power | |||
| SI.Power[:] | P (from GenericPump) | {100, 200, 250} | Power data points |
Revisions
-
June 17, 2024, by Raphael Gebhart:
Transferred from Buildings Library to ThermofluidStream Library. -
March 29, 2023, by Hongxiang Fu:
Deleted angular speed parameters with the unit rpm. This is for IBPSA, #1704. -
October 14, 2021, by Hongxiang Fu:
Rewrote the statements usinguse_powerCharacteristicto support the implementation ofBuildings.Fluid.Movers.BaseClasses.Euler. This is for #2668. -
February 17, 2016, by Michael Wetter:
Updated parameter names for #396. -
December 12, 2014, by Michael Wetter:
AddeddefaultComponentPrefixesanddefaultComponentNameannotations. - April 17, 2014
by Filip Jorissen:
Initial version
