modelTransportDelay
Extends from Interfaces.SISOFlow (Base Model with basic flow eqautions for SISO).
Information
Delays the temperature and massFraction, not pressure, since pressure differences propagate with speed of sound, and since delaying only steady state pressure p not inertial pressure r might lead to undesirable behavior.
Note that this component uses the spatialDistribution operator, that has some artefacts (see Fig. 1) for high and low non-dimensional speeds v (possibly due to inerpolation or extrapolation of the function). Therefore minimum and maximum speed in the non-dimensional coordinate x (inlet @ x=0, outlet @ x=1) is limited. The default limits are [0.01, 50], so the delay is limited by default to [0.02s, 100s]. This limit can be adjusted in the advanced parameters tab.

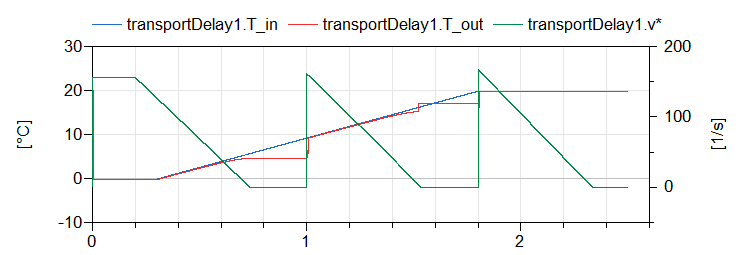

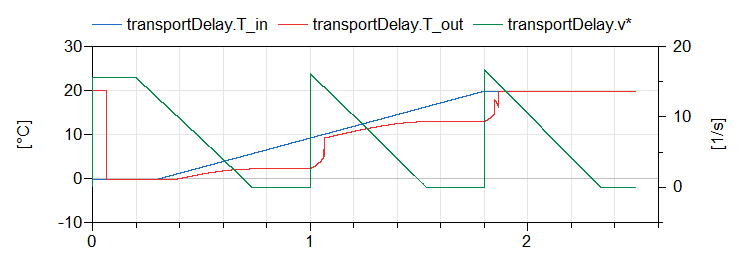

Fig. 1: artefacts of the TransportDelay
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| String | instanceName (from DropOfCommonsPlus) | getInstanceName() | Instance name |
| SI.Length | l | Length | |
| SI.Radius | r | Radius | |
| Boolean | d1l | displayParameters and displayLength | displayLength at position 1 |
| Boolean | d1r | displayParameters and displayRadius and not d1l | displayRadius at position 1 |
| Boolean | d2r | displayParameters and displayRadius and not d1r | displayRadius at position 2 |
| Medium.ThermodynamicState | state_0 | Medium.setState_phX(Medium.p_default, Medium.h_default, Medium.X_default[1:Medium.nXi]) | Default state |
| Medium.MassFraction[Medium.nXi] | Xi_0 | Medium.massFraction(state_0) | Default mass fractions |
| SI.SpecificVolume | v_0 | 1/Medium.density(state_0) | Default specific volume |
| Layout | |||
| Boolean | displayInstanceName (from DropOfCommonsPlus) | dropOfCommons.displayInstanceNames | = true, if instance name is displayed |
| Boolean | displayParameters (from DropOfCommonsPlus) | dropOfCommons.displayParameters | = true, if displaying parameters is enabled |
| Advanced | |||
| Boolean | considerInertance (from SISOFlow) | dropOfCommons.considerInertance | =true, if transient momentum (inertance) term is considered; disable only for advanced use |
| Utilities.Units.Inertance | L (from SISOFlow) | dropOfCommons.L | Inertance |
| StateSelect | m_flowStateSelect (from SISOFlow) | StateSelect.default | State selection for mass flow rate |
| Boolean | clip_p_out (from SISOFlow) | = false, if dr_corr=0 (correction of inertial pressure difference) | |
| Medium.AbsolutePressure | p_min (from SISOFlow) | dropOfCommons.p_min | Minimum steady-state output pressure |
| Medium.Density | rho_min | dropOfCommons.rho_min | Minimum density |
| Real | v_min | 0.01 | Minimum nondimensional speed |
| Real | v_max | 50 | Maximum nondimensional speed |
| Initialization › Mass flow rate | |||
| InitializationMethods | initM_flow (from SISOFlow) | ThermofluidStream.Utilities.Types.InitializationMethods.none | Initialization method for mass flow rate |
| SI.MassFlowRate | m_flow_0 (from SISOFlow) | 0 | Initial value for mass flow rate |
| Utilities.Units.MassFlowAcceleration | m_acceleration_0 (from SISOFlow) | 0 | Initial value for derivative of mass flow rate |
| Layout › Display parameters | |||
| Boolean | displayLength | true | = true, if length l is displayed |
| Boolean | displayRadius | true | = true, if radius r is displayed |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Inlet | inlet (from SISOFlow) | ||
| Outlet | outlet (from SISOFlow) |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| SI.MassFlowRate | m_flow (from SISOFlow) | inlet.m_flow | Mass flow rate |
| SI.Pressure | dr_corr (from SISOFlow) | Correction of inertial pressure difference | |
| SI.Pressure | dp (from SISOFlow) | Pressure difference | |
| Medium.AbsolutePressure | p_in (from SISOFlow) | Medium.pressure(inlet.state) | Inlet pressure |
| Medium.SpecificEnthalpy | h_in (from SISOFlow) | Medium.specificEnthalpy(inlet.state) | Inlet specific enthalpy |
| Medium.MassFraction[Medium.nXi] | Xi_in (from SISOFlow) | Medium.massFraction(inlet.state) | Inlet mass fractions |
| Medium.AbsolutePressure | p_out (from SISOFlow) | Outlet pressure | |
| Medium.SpecificEnthalpy | h_out (from SISOFlow) | Outlet specific enthalpy | |
| Medium.MassFraction[Medium.nXi] | Xi_out (from SISOFlow) | Outlet mass fractions | |
| Real | x | Relative position s/l | |
| Real | v | der(x) | Relative speed v/l |
