.ThermofluidStream.Topology.Internal.SplitterRatio

Information

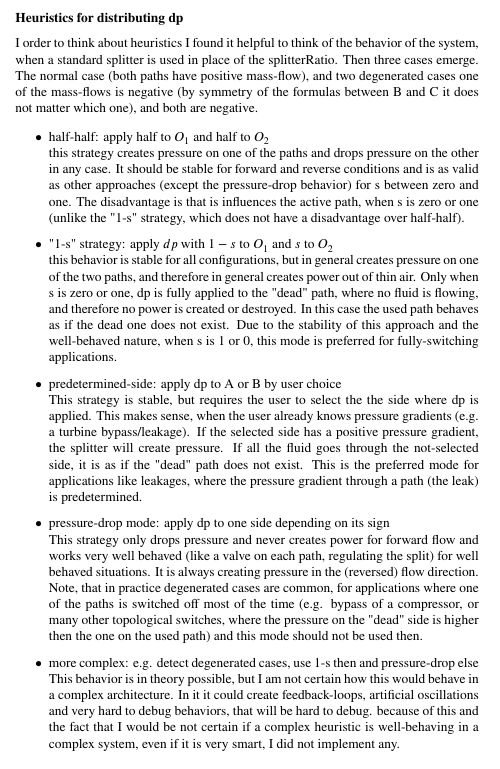

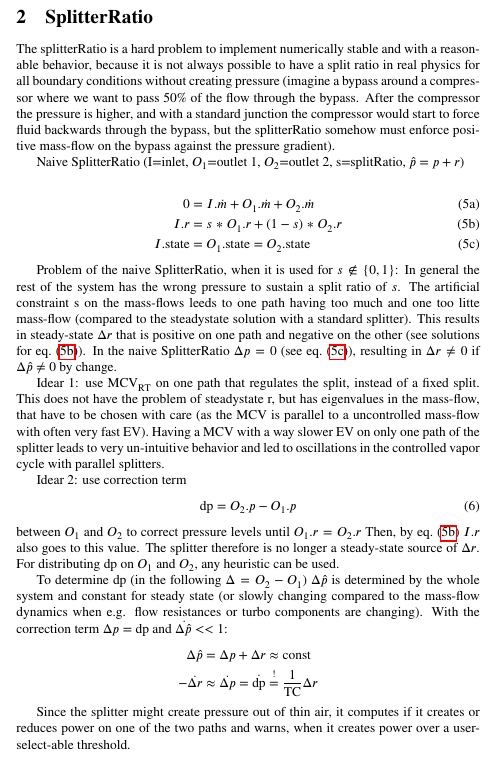

Splitter, that uses a directly set split ratio. In order to have stationary r that goes to zero, a pressure difference between outlet A and B is calculated, that is applied to one of the outlets, until r->0.


The idear builds on the splitter with an enforeced regime of Zimmer Real-Time Simulation of an Aircraft Electric Driven Environmental Control System for Virtual Testing Purposes Sec 3.4

Contents

NameDescription
 MediumMedium model
