modelPtH_limiter
Extends from TransiEnt.Basics.Icons.Controller (Icon for controller).
Information
1. Purpose of model
This component calculates the set point of the heat production of a Power to Heat unit.
It takes as inputs the set value of the heat production site where the PtH unit is installed and the excess RE available.
2. Level of detail, physical effects considered, and physical insight
Purely technical component without physical modeling.
3. Limits of validity
Validation not required.
4. Interfaces
Inputs: RE_curtail, Q_flow_set_demand
Outputs: Q_flow_set_PtH
5. Nomenclature
(no elements)

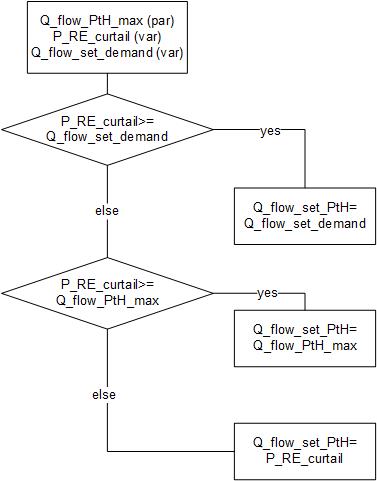

6. Governing Equations
7. Remarks for Usage
This component can be used if the available otherwise curtailed renewable energy production is known in advance. Besides, the heat production profile to be convered by the heat production site should also be known.
8. Validation
See test model: TransiEnt.Producer.Heat.Power2Heat.Check.TestPtH_limiter
9. References
none
10. Version History
Ricardo Peniche 2016
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.HeatFlowRate | Q_flow_PtH_max | 650e6 | maximum heating capacity of the PtH device |
| Modelica.Units.SI.HeatFlowRate | Q_flow_BP_min | 0 | minimum heat flow of CHP-plant's back pressure mode |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| TransiEnt.Basics.Interfaces.Thermal.HeatFlowRateOut | Q_flow_set_PtH | Heat flow rate output set value | |
| TransiEnt.Basics.Interfaces.Thermal.HeatFlowRateIn | Q_flow_set_demand | Set value of demanded heat flow rate | |
| TransiEnt.Basics.Interfaces.Electrical.ElectricPowerIn | P_RE_curtail | Electric power input |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Integer | OpMode |
