modelTimeBasedNoise
Demonstrates the a simple case of a timel based noise
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information

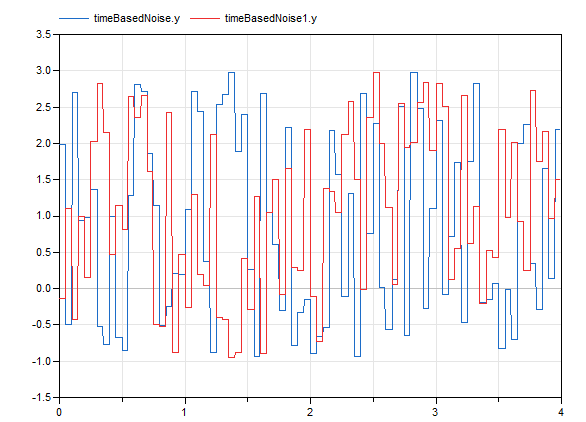

This example demonstrates a simple use of the time based noise block. The result of a simulation is show in the next diagram. Both the noise blocks give different results due to the automatic seeding of the blocks:
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Units.SI.Radius | r | 1 | Radius of circle |
| Real | pi | Modelica.Constants.pi | Constant pi |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Noise.GlobalSeed | globalSeed | ||
| Sources.TimeBasedNoise | timeBasedNoise | ||
| Sources.TimeBasedNoise | timeBasedNoise1 |
Revisions
|
Copyright © DLR Institute of System Dynamics and Control Initial version implemented by A. Klöckner, F. v.d. Linden, D. Zimmer, M. Otter. DLR Institute of System Dynamics and Control |
