.AixLib.Electrical.AC.ThreePhasesUnbalanced.Lines.TwoPortResistance

Information

Resistive model that connects two AC three-phase unbalanced interfaces. This model can be used to represent a cable in a three-phase unbalanced AC system.

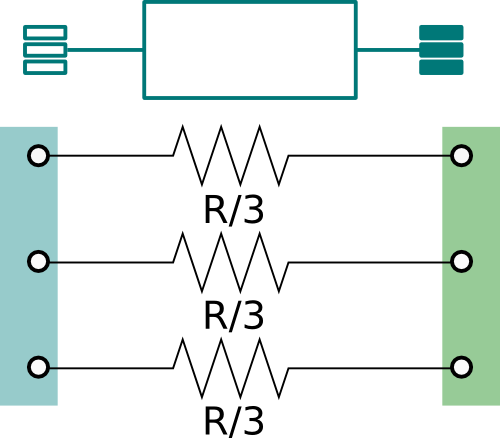

The model represents the lumped resistance as shown in the figure above. Assuming that the resistance R is the overall resistance of the cable, each line has a resistance equal to R/3.

Revisions

• January 14, 2015, by Marco Bonvini:
  Added equation that represents Joule losses
• October 3, 2014, by Marco Bonvini:
  Added model and documentation.
