modelSignalRanker
Example model for signal ranker
Extends from Modelica.Icons.Example (Icon for runnable examples).
Information
Example that demonstrates the use of the signal ranker model.

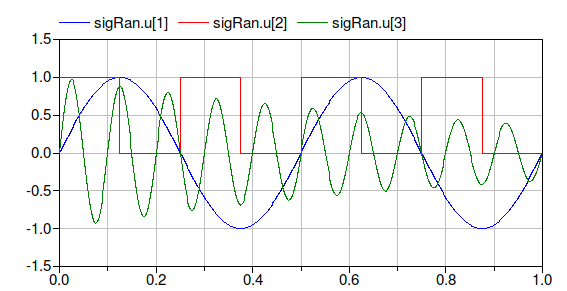

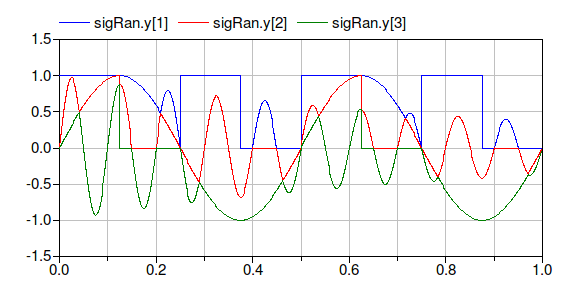

The figure below shows the input and output signals of the block.
Note that
sigRan.y[1] ≥ sigRan.y[2] ≥ sigRan.y[3].
Components
| Type | Name | Default | Description |
|---|---|---|---|
| Modelica.Blocks.Sources.Sine | sine | ||
| Modelica.Blocks.Sources.Pulse | pulse | ||
| Annex60.Controls.Continuous.SignalRanker | sigRan | ||
| Modelica.Blocks.Sources.ExpSine | expSine |
Revisions
-
November 21, 2011, by Michael Wetter:
Added documentation.
