.Annex60.Fluid.Movers.Validation.PowerExact

Information

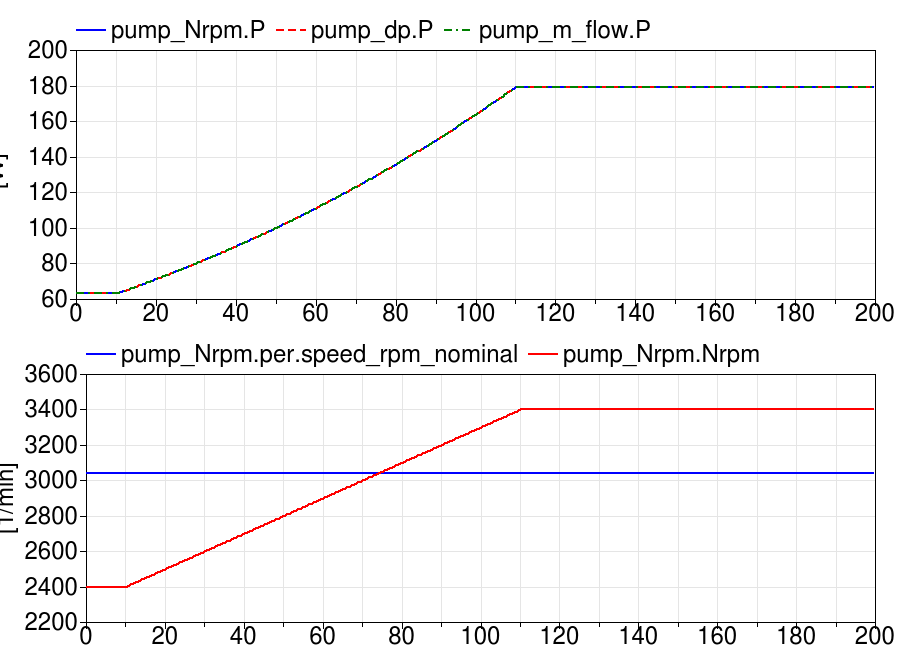

This example is identical to Annex60.Fluid.Movers.Validation.PowerSimplified, except that the performance data for the flow controlled pumps pump_dp and pump_m_flow contain the pressure curves and efficiency curves. The plot below shows that this leads to a computation of the power consumption that is identical to the one from the speed controlled pump pump_Nrpm.


Revisions


Generated at 2024-05-12T18:15:56Z by OpenModelicaOpenModelica 1.22.4 using GenerateDoc.mos
