.BuildSysPro.IBPSA.Fluid.Movers.Validation.Pump_Nrpm_stratos

Information

This example provides a validation for the Nrpm model. A Wilo Stratos 80/1-12 pump is simulated for five different RPMs for load that changes with time. The resulting curves for the pump head and mass flow rate are plotted using colored lines over the pump data sheet. The resulting figures are shown below.

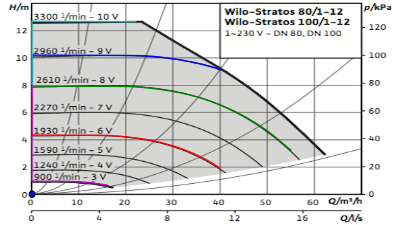

Pump heads:

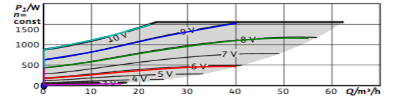

Pump electrical power:

The figures are adapted from the Wilo Stratos 80/1-12 data sheet.

Contents

Name	Description
Medium

Revisions

• June 6, 2015, by Michael Wetter:
  Removed dublicate experiment annotation. This is for #266.
• November 26, 2014, by Filip Jorissen:
  Cleaned up implementation
• February 27, 2014, by Filip Jorissen:
  First implementation. See #202 for a discussion and validation.
