.BuildingControlLib.BuildingControl.VDI3813.ActuatorFunctions

Information

This package contains actuator functions described in VDI 3813 [1]:

"Actuator functions (Figure 11) convert input information originating from operator or application functions to physical quantities appropriate to their output interface. They thus represent the physical outputs of the automation system to the environment. As is the case with sensors, the informative representation takes the form of function blocks showing the input information and the corresponding physical output. Additionally, actuator functions supply output information in terms of the current manipulated value of the physical interface." [1, section 6.2.1, p. 17]

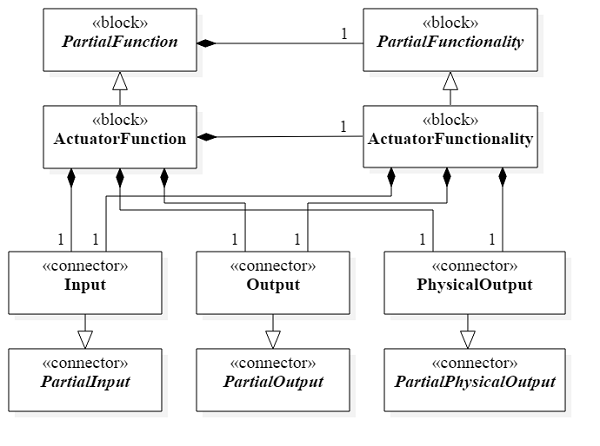

Fig. 1: UML class diagramm of the actuator functions basic design idea.[1, section 6.2.1, p. 17]

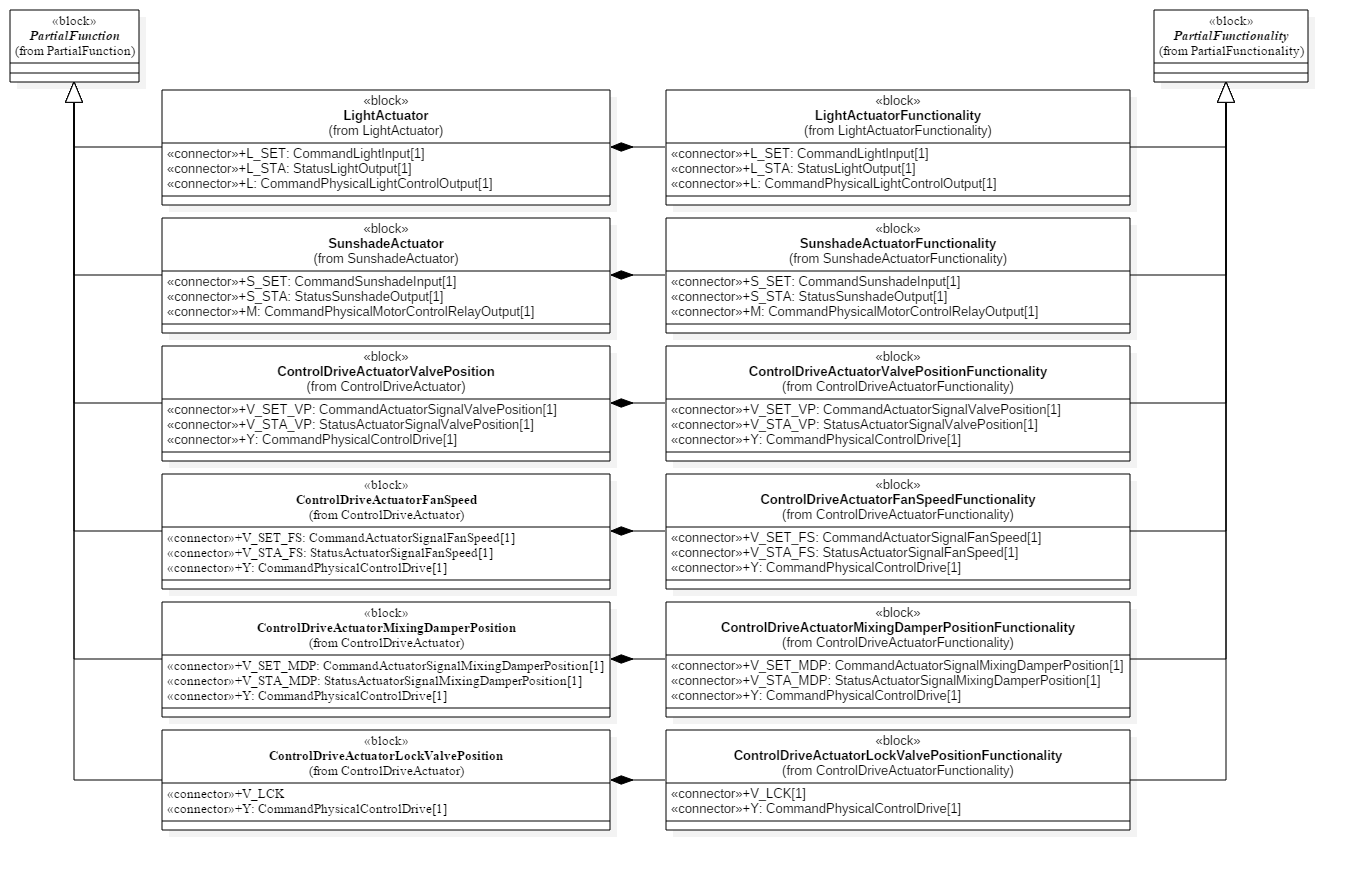

Fig. 2: UML class diagramm of the actuator functions planned for implementation.[1, section 6.2.1, p. 17]

Contents

Name	Description
Examples	Models for functionality test of actuator functions
SunshadeActuator	Actuator function to provide a control signal to a physical sunshade actuator
ControlDriveActuator	Package which contains control drive actuators
Internal	Algorithm models that implement the functionality of the actuator functions

Revisions

• March 07, 2017  by Georg Ferdinand Schneider & Georg Ambrosius Peßler:
  Implemented.
