packageBuildingControl

This package contains a collection of control functions for building automation referring to VDI3813 standard

Extends from Modelica.Icons.Package (Icon for standard packages).

Information

This package contains models to simulate building control. Some models are based on technical directives or standards like BuildingControl.VDI3813 and BuildingControl.VDI3814. Models without such a source can be found in BuildingControl.Nonstandardized.

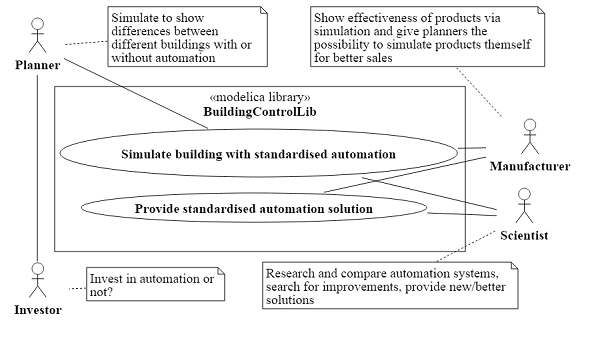

Fig. 1: UML use case diagramm of the BuildingControlLib.


Contents

NameDescription
VDI3813Package of control functions for building automation referring to VDI3813 standard.
VDI3814This package contains a collection of control functions for building automation referring to VDI3814 standard
IEC60381Analogue signals for process control systems
NonstandardizedCollection of non-standardized reoccurring control functions from building automation

Revisions

  • March 07, 2017  by Georg Ferdinand Schneider & Georg Ambrosius Peßler:
    Implemented.
