blockOccupancyEvaluation
Extends from BuildingControlLib.BuildingControl.VDI3813.Interfaces.Partial.PartialFunction (Superclass for all function blocks to provide graphics and enforce implementation of functionality).
Information
Overview
Block that implements function "Occupancy evaluation" from VDI 3813 [1, section 6.5.2, p. 32 - 33].
Functional Description
"The function Occupancy evaluation (RA-FL section 6, column 1; informative function block Figure 23) evaluates the output information received from Presence detection and from operator functions (Signal presence) in order to determine the occupancy state in a room for all further application functions. Various options of room check-in and check-out can thus be implemented."[1, section 6.5.2, p. 32 - 33]

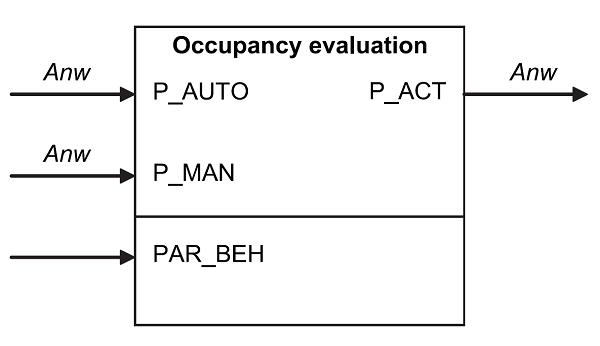

Fig. 1: "Informative representation of the application function Occupancy evaluation", [1, section 6.5.2, Figure 23, p. 32 - 33]
|
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Boolean | PAR_BEH | true | Changes the evaluation behaviour. TRUE: Only P_AUTO is evaluated; FALSE: P_AUTO and P_MAN are evaluated using logical conjunction |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.BooleanInput | P_AUTO | Presence signal for evaluation issues generated from a sensor device. | |
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.BooleanInput | P_MAN | Presence signal for evaluation issues generated from an operator input. | |
| BuildingControlLib.BuildingControl.VDI3813.Interfaces.BooleanOutput | P_ACT | Evaluated presence signal. |
Components
| Type | Name | Default | Description |
|---|---|---|---|
| PartialFunctionality | functionality (from PartialFunction) |
Revisions
- March 07, 2017 by Georg Ferdinand Schneider & Georg Ambrosius Peßler:
Implemented.
