.BuildingControlLib.BuildingControl.VDI3813.OperatorAndDisplayFunctions

Information

This package contains operator and display functions described in VDI 3813 [1]:

"In room control, operator functions convert operator control actions to output information which is then available as input information to the application functions. Display functions convert output information from application functions or operator functions to visual information informing the user about states of the automation system, e. g. about the controlled variable (actual value) or reference variable (setpoint) of a room temperature control (Figure 15). Operator and display functions thus form the interface for interaction between the room control system and the user." [1, section 6.4.1, p. 23]

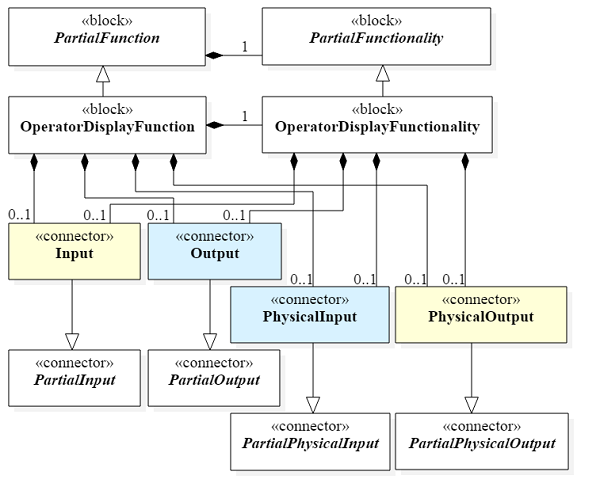

Fig. 1: UML class diagramm of the operator and display functions basic design idea.[1, section 6.4.1, p. 23]

Contents

Name	Description
Examples	Models for functionality test of operator and display functions
ActuateSunshade	Enables the user to adjust the sunshade position and the slat angle
AdjustTemperatureSetpoint	Enables the user to adjust the setpoint for room temperature
Internal	Algorithm models that implement the functionality of the operator and display functions

Revisions

• March 07, 2017  by Georg Ferdinand Schneider & Georg Ambrosius Peßler:
  Implemented.
