blockTrueFalseHold
Block that holds an output signal for at least a specified duration
Information
Block that holds a true or false signal for at least a defined time period.
Whenever the input u switches to true (resp. false),
the output y switches and remains true for at least
the duration specified by the parameter trueHoldDuration
(resp. falseHoldDuration).
After this duration has elapsed, the output will be y = u.
This block could for example be used to disable an economizer, and not re-enable it for 10 min, and vice versa.

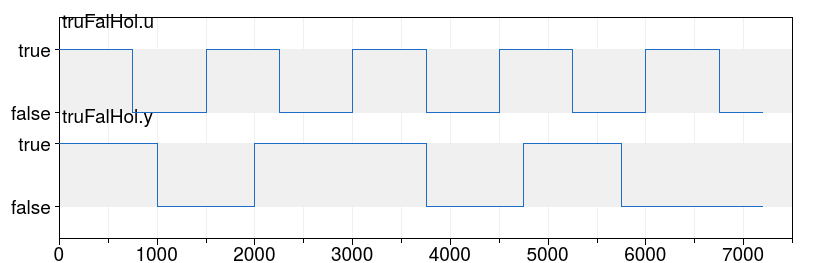

Simulation results of a typical example with trueHoldDuration = falseHoldDuration = 1000 s.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Real | trueHoldDuration | Duration of true hold | |
| Real | falseHoldDuration | trueHoldDuration | Duration of false hold |
Connectors
| Type | Name | Default | Description |
|---|---|---|---|
| Buildings.Controls.OBC.CDL.Interfaces.BooleanInput | u | Input signal that is to be delayed | |
| Buildings.Controls.OBC.CDL.Interfaces.BooleanOutput | y | Output with delayed input signal |
Revisions
-
January 13, 2025, by Antoine Gautier:
Mergeelsewhenclauses.
This is for Buildings, issue 4082. -
August 26, 2024, by Antoine Gautier:
Resolved an issue with unit impulse signals.
This is for Buildings, issue 3966. -
June 13, 2024, by Antoine Gautier:
Refactored with synchronous language elements.
This is for Buildings, issue 3787. -
November 12, 2020, by Michael Wetter:
Reformulated to remove dependency toModelica.Units.SI.
This is for Buildings, issue 2243. -
September 18, 2017, by Michael Wetter:
Improved event handling. -
July 14, 2017, by Michael Wetter:
Corrected model to set output equal to input during initialization. -
June 13, 2017, by Michael Wetter:
Reimplemented model using a state graph to avoid having to test for equality within tolerance, and to correct a bug. This implementation is also easier to understand.
This is for Buildings, issue 789. -
May 24, 2017, by Milica Grahovac:
First implementation.
