.Buildings.HeatTransfer.Windows.Examples.BeamDepthInRoom

Information

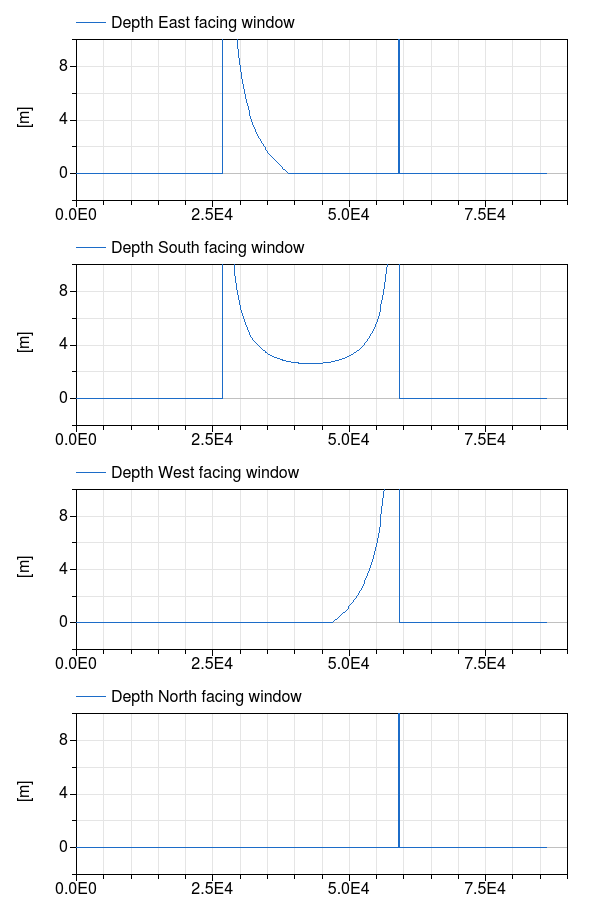

This example computes how far from the wall, measured perpendicular to the wall, hits the workplane. The figure below shows this length for January 1 in Chicago for windows with different orientations. The spike at sunset is a numerical artifact that has no physical significance.

Revisions

• November 14, 2015, by Michael Wetter:
  First implementation.
