modelThreeRoomsContam

Model with three rooms for the validation of the multizone air exchange models
Diagram of ThreeRoomsContamOpen the diagram
▶ Simulate in your browser

Extends from Modelica.Icons.Example (Icon for runnable examples).

Information

This is a model of three rooms that exchange air among each based on density difference between the air in the rooms and the outside. The model implements the configuration shown below.

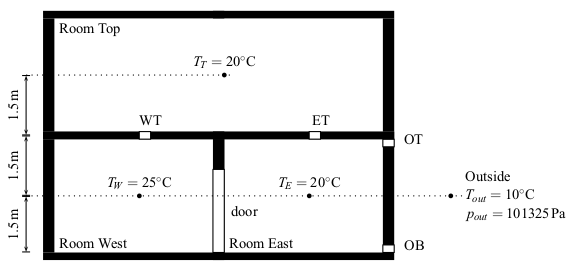

Configuration of the three rooms.

For the model that has been used for a comparative model validation between CONTAM and the Buildings library in Wetter (2006), see Buildings.Airflow.Multizone.Validation.ThreeRoomsContamDiscretizedDoor.

References

Michael Wetter. Multizone Airflow Model in Modelica. Proc. of the 5th International Modelica Conference, p. 431-440. Vienna, Austria, September 2006.

Components

TypeNameDefaultDescription
Buildings.Fluid.MixingVolumes.MixingVolumevolEasAir volume east room
Buildings.Airflow.Multizone.OrificeoriOutBotOrifice at bottom of facade
Buildings.Airflow.Multizone.MediumColumncolOutTopMedium column for bottom floor outside air
Buildings.Airflow.Multizone.OrificeoriOutTopOrifice at top of facade
Buildings.Airflow.Multizone.MediumColumncolEasInTopMedium column for bottom floor
Buildings.Fluid.Sources.Boundary_pTvolOutOutside air boundary condition
Buildings.Airflow.Multizone.MediumColumncolEasInBotMedium column for bottom floor
Buildings.Airflow.Multizone.MediumColumncolOutBotMedium column for bottom floor outside air
Buildings.Airflow.Multizone.MediumColumncolWesBotMedium column for bottom floor
Buildings.Airflow.Multizone.OrificeoriWesTopOrifice between top and bottom west floor
Buildings.Airflow.Multizone.MediumColumncolWesTopMedium column for top floor
DoorOpendooOpeClo
Buildings.Fluid.MixingVolumes.MixingVolumevolWesAir volume west floor
Buildings.Airflow.Multizone.MediumColumncol1EasBotMedium column for bottom floor
Buildings.Airflow.Multizone.OrificeoriEasTopOrifice between top and bottom east floor
Buildings.Airflow.Multizone.MediumColumncolEasTopMedium column for top floor
Buildings.Fluid.MixingVolumes.MixingVolumevolTopAir volume top floor
Buildings.HeatTransfer.Sources.FixedTemperatureTTopFixed temperature
Buildings.HeatTransfer.Sources.FixedTemperatureTWesFixed temperature
Buildings.HeatTransfer.Sources.FixedTemperatureTEasFixed temperature
Modelica.Thermal.HeatTransfer.Components.ThermalConductorconTopThermal conductor
Modelica.Thermal.HeatTransfer.Components.ThermalConductorconWesThermal conductor
Modelica.Thermal.HeatTransfer.Components.ThermalConductorconEasThermal conductor
