modelSideFins

Test model for side fins
Diagram of SideFinsOpen the diagram
▶ Simulate in your browser

Extends from Modelica.Icons.Example (Icon for runnable examples).

Information

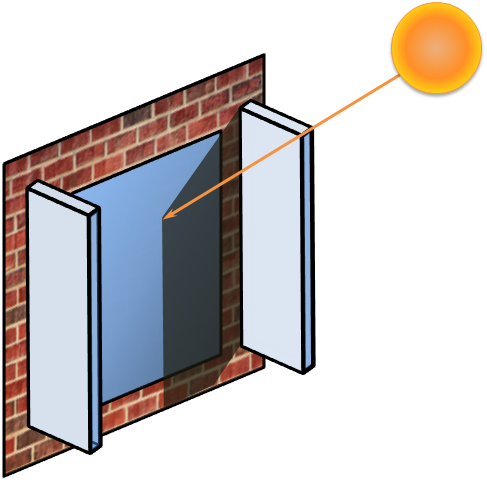

This example uses the basic side fins model with solar angles as input and calculates the fraction of total window area that is exposed to the sun. For a detailed description of the solar angles used in the model, see to documentation in the package Buildings.BoundaryConditions.SolarGeometry. For a detail description of side fin model, see Buildings.HeatTransfer.Windows.BaseClasses.SideFins. The required data for the solar angle calculations are obtained from the weather data.

Solar angles used in this model are:


Components

TypeNameDefaultDescription
Buildings.BoundaryConditions.SolarGeometry.ZenithAnglezenZenith angle: angle between the earth surface normal and the sun's beam
Buildings.BoundaryConditions.SolarGeometry.IncidenceAngleincAngSolar incidence angle on a tilted surface
Buildings.BoundaryConditions.WeatherData.ReaderTMY3weaDatWeather data
Buildings.HeatTransfer.Windows.BaseClasses.SideFinsfinCalculates fraction of window area shaded by the side fins
Buildings.BoundaryConditions.SolarGeometry.BaseClasses.AltitudeAnglealtAngAltitude angle: Angle between Sun ray and horizontal surface
Buildings.BoundaryConditions.SolarGeometry.BaseClasses.WallSolarAzimuthwalSolAziAngle measured in horizontal plane between projection of sun's rays and normal to vertical surface

Revisions

  • September 16, 2021, by Michael Wetter:
    Removed assignment of parameter lat as this is now obtained from the weather data reader.
    This is for IBPSA, #1477.
  • July 5, 2012, by Michael Wetter:
    Changed definitions of side fin height h to be measured from the top of the window.
  • Feb 01, 2012, by Kaustubh Phalak
    First implementation.
